Lexmark MX71 Series - Page 184

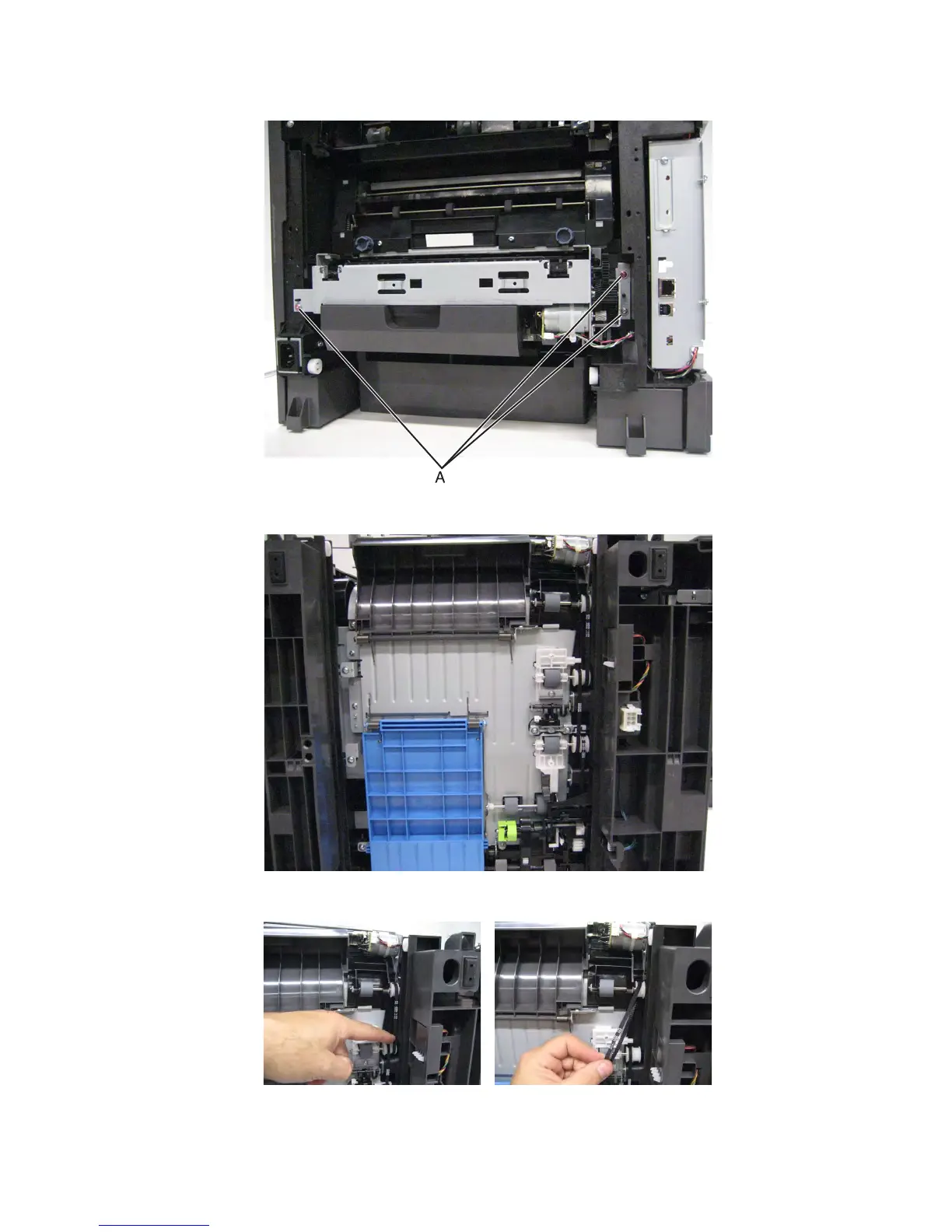

5 Remove the three screws (A) securing the duplex motor to the machine.
6 Position the printer so that you can access the bottom of the machine, as shown in the following image.
7 Detach the drive belt from the pulley.
7463
Repair information
554
