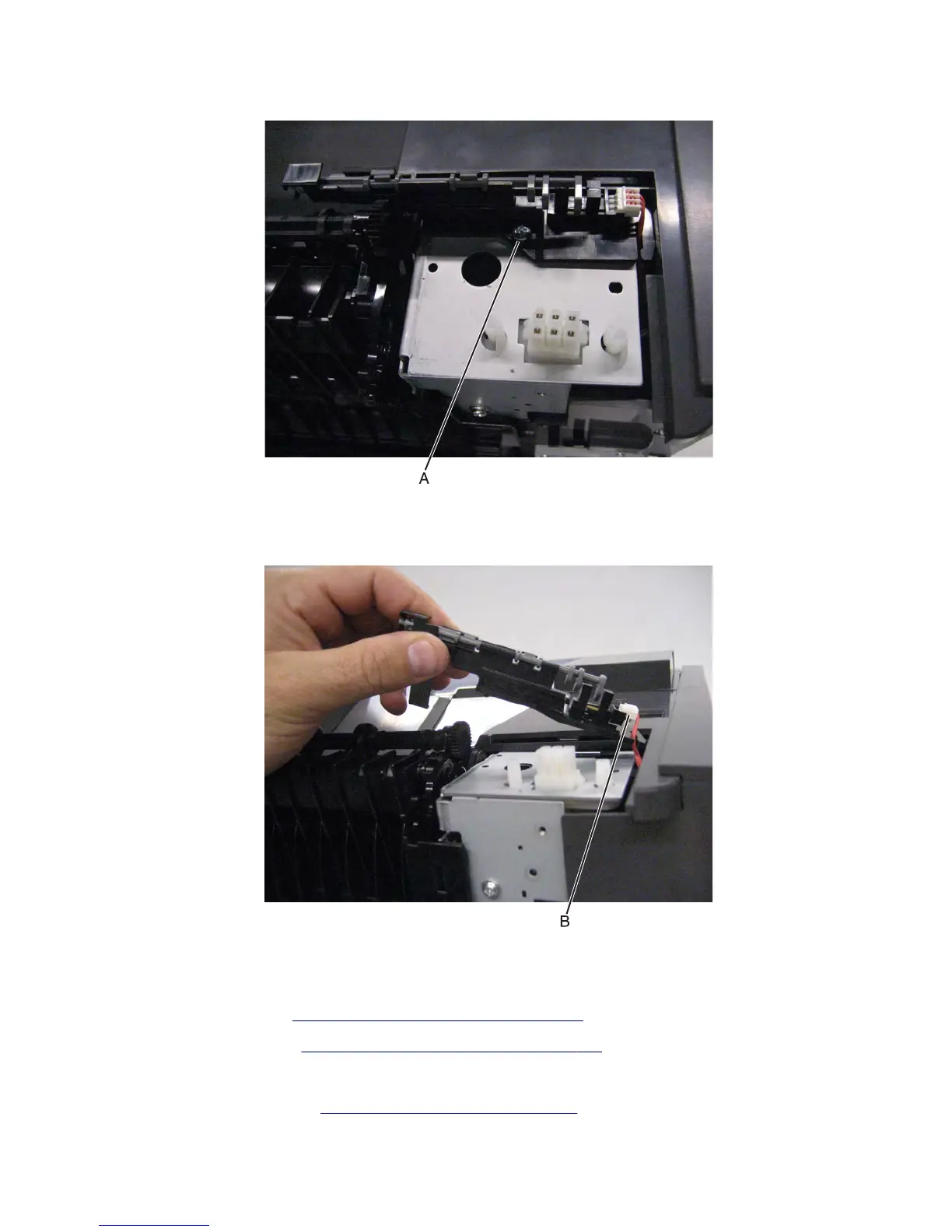

4 Remove the screw (A) securing the sensor (standard bin full) to the machine.
5 Remove the sensor (standard bin full).
6 Disconnect the cable (B).
Standard bin cover removal (MX71x)
1 Remove the left cover. See “Left cover removal (MX71x)” on page 416.
2 Remove the right cover. See “Right cover removal (MX71x)” on page 438.
3 Open the rear door.
4 Remove the upper redrive. See “Upper redrive removal” on page 571.
7463
Repair information
565
