Lexmark MX71 Series - Page 196

5 Remove the sensor (standard bin full) with actuator. See “Sensor (standard bin full) removal” on page 564.

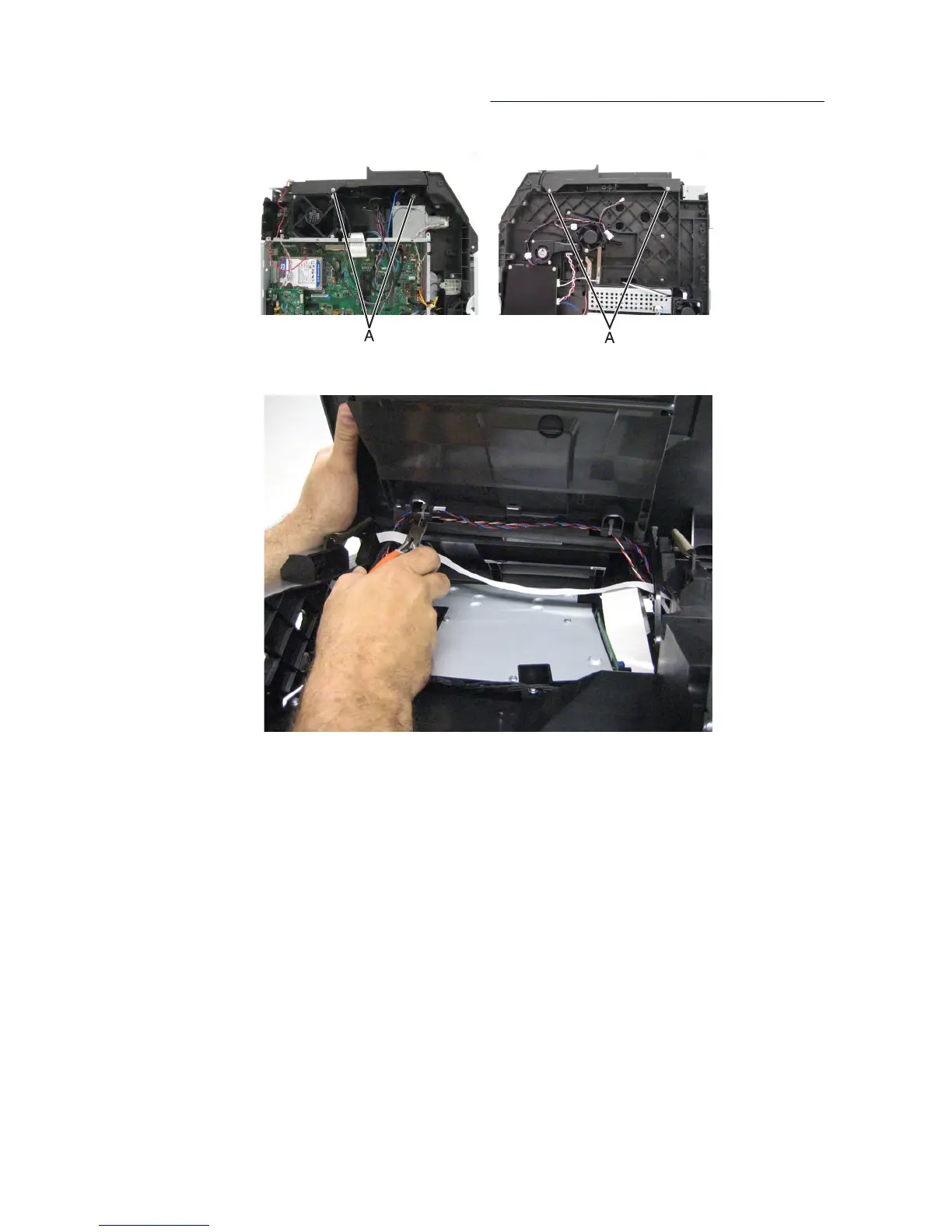

6 Remove the four screws (A).
7 Cut the two cable ties securing the cables to the bottom of the standard bin cover.
7463
Repair information
566
