ADF removals
ADF assembly removal
1 Remove the ADF rear cover. See “ADF rear cover removal” on page 598.

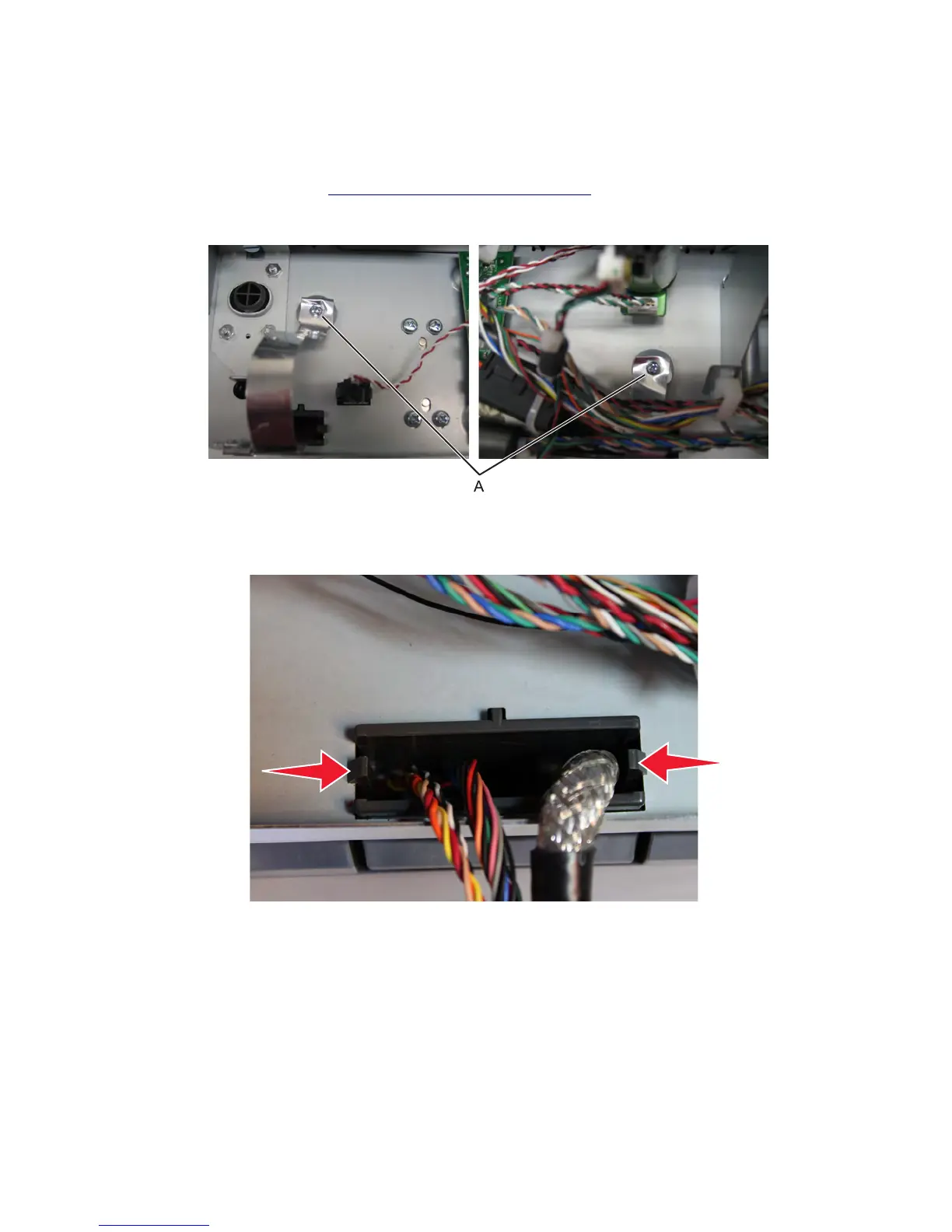

2 Remove the two screws (A) securing the two ground straps to the ADF.
3 Disconnect the JICC1 and JADF1 cables from the ADF controller card.
4 Pinch the snaps on the JICC1 and JADF1 cable router to release the cable router.
