ADF scanner CCD removal
1 Remove the ADF front cover. See “ADF front cover removal” on page 587.
2 Remove the ADF rear cover. See “ADF rear cover removal” on page 598.
3 Remove the ADF input tray. See “ADF input tray removal” on page 589.
4 Remove the ADF lift tray. See “ADF lift tray removal” on page 594.

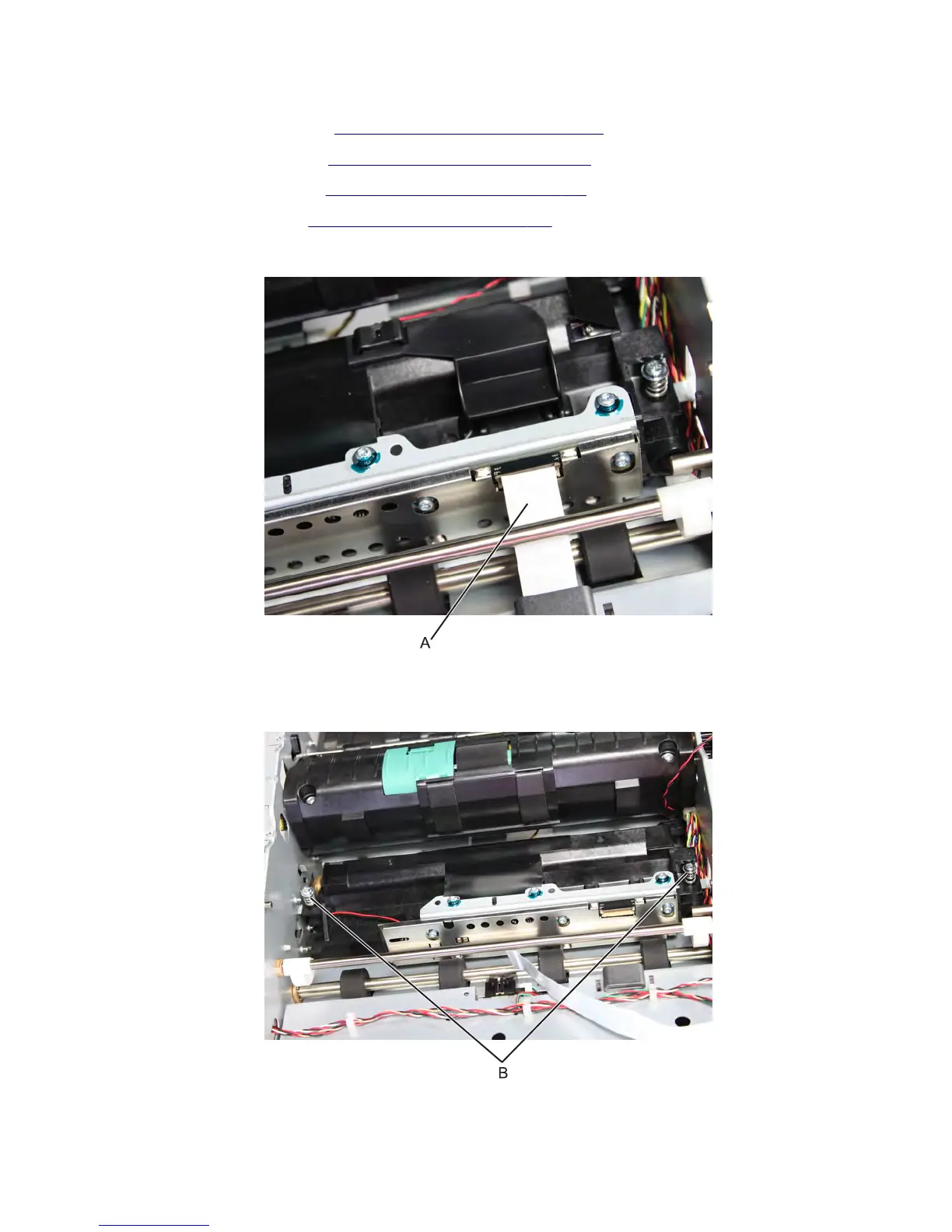

5 Disconnect the CCD ribbon cable (A) from the scanner CCD.
6 Remove the document set receiver sensor.
7 Remove the two screws with spring (B) securing the scanner CCD.
7463
Repair information
579
