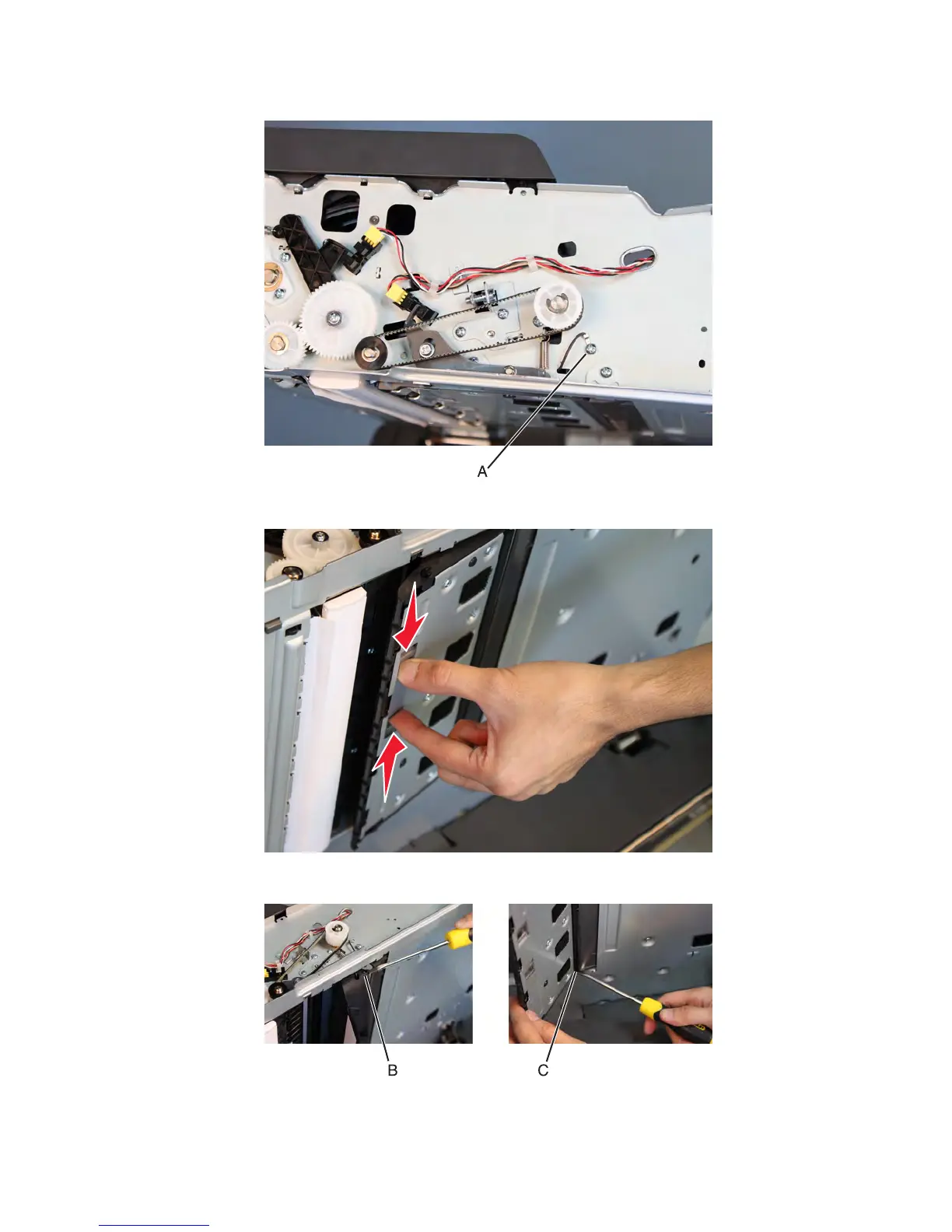

5 Remove the screw (A) from the ground cable.
6 Pinch the tabs on the ADF bottom door to open the ADF bottom door.
7 Pry the hinge on the front (B) and rear (C) of the ADF bottom door to release the tabs.
8 Remove the ADF bottom door.
7463
Repair information
578
