8 Remove the mylar pads attached at the back of the sensor.

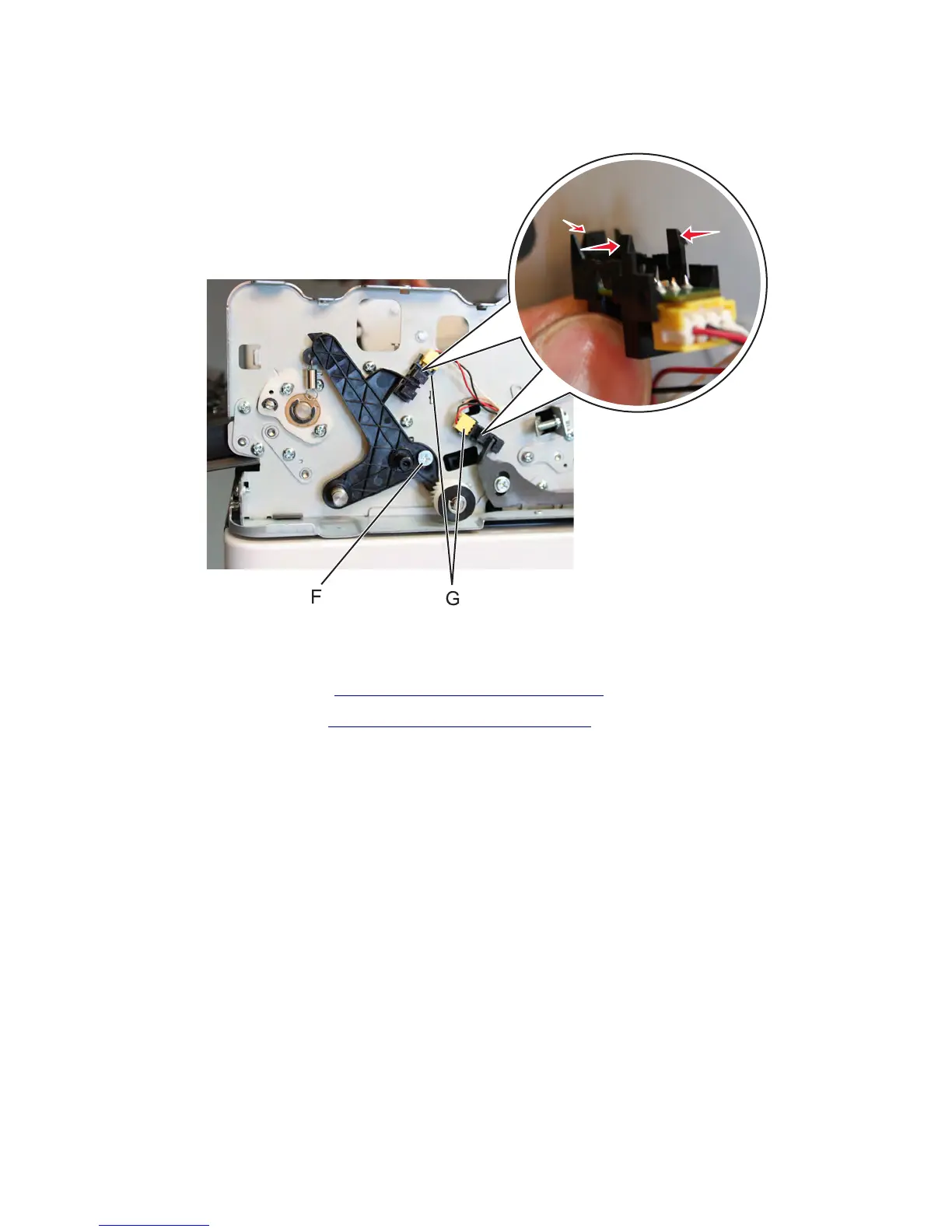

9 Pinch the snap of the sensors (G) from the back to remove.
ADF input tray removal
1 Remove the ADF front cover. See “ADF front cover removal” on page 587.
2 Remove the ADF rear cover. See “ADF rear cover removal” on page 598.
7463
Repair information
589
