6 Remove the mylar and release the hooks securing the sensor (ADF lower door interlock) to the machine.
7 Remove the sensor (ADF lower door interlock).

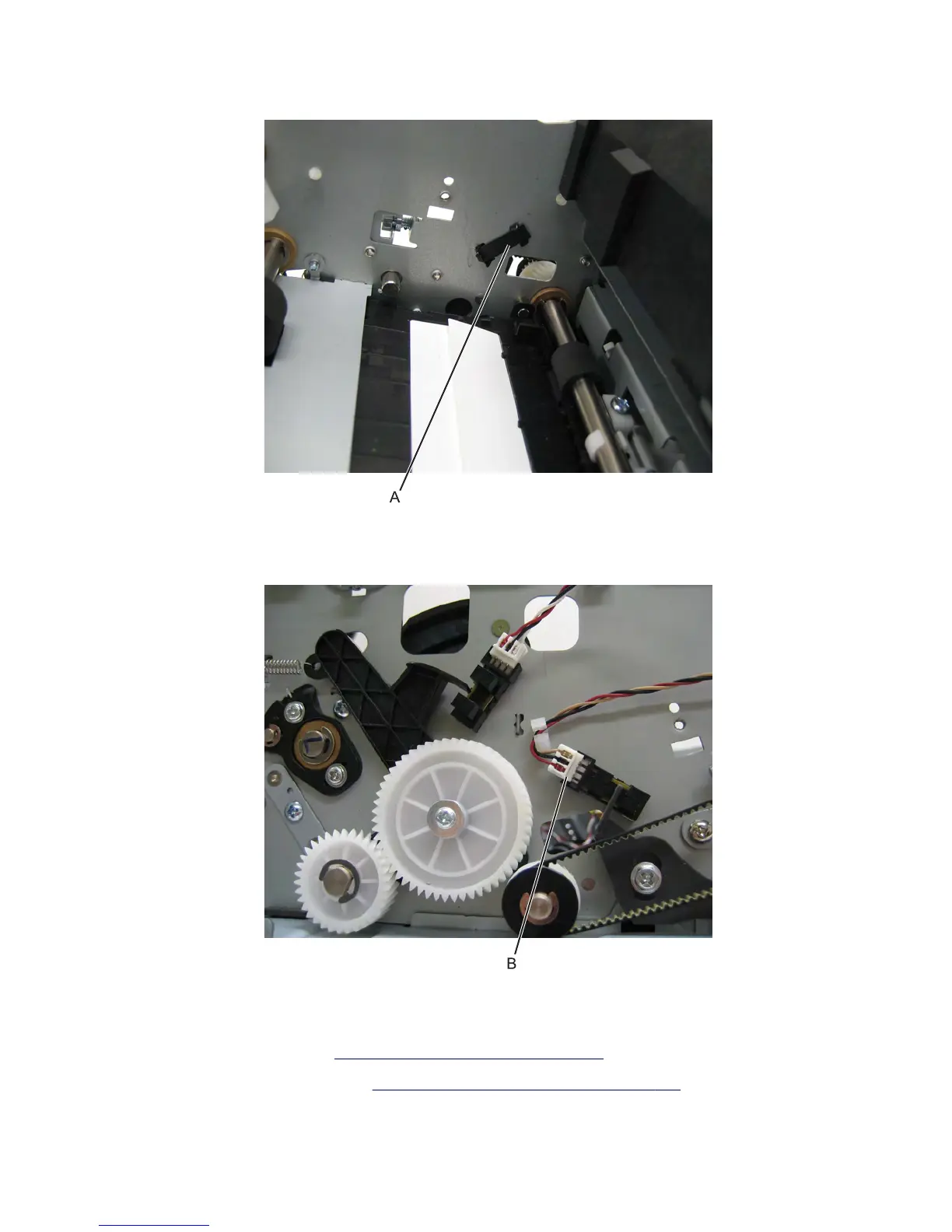

8 Disconnect the cable (A).
Sensor (ADF top door interlock) removal
1 Remove the ADF front cover. See “ADF front cover removal” on page 587.
2 Remove the ADF separation guide. See “ADF separation guide removal” on page 601.
