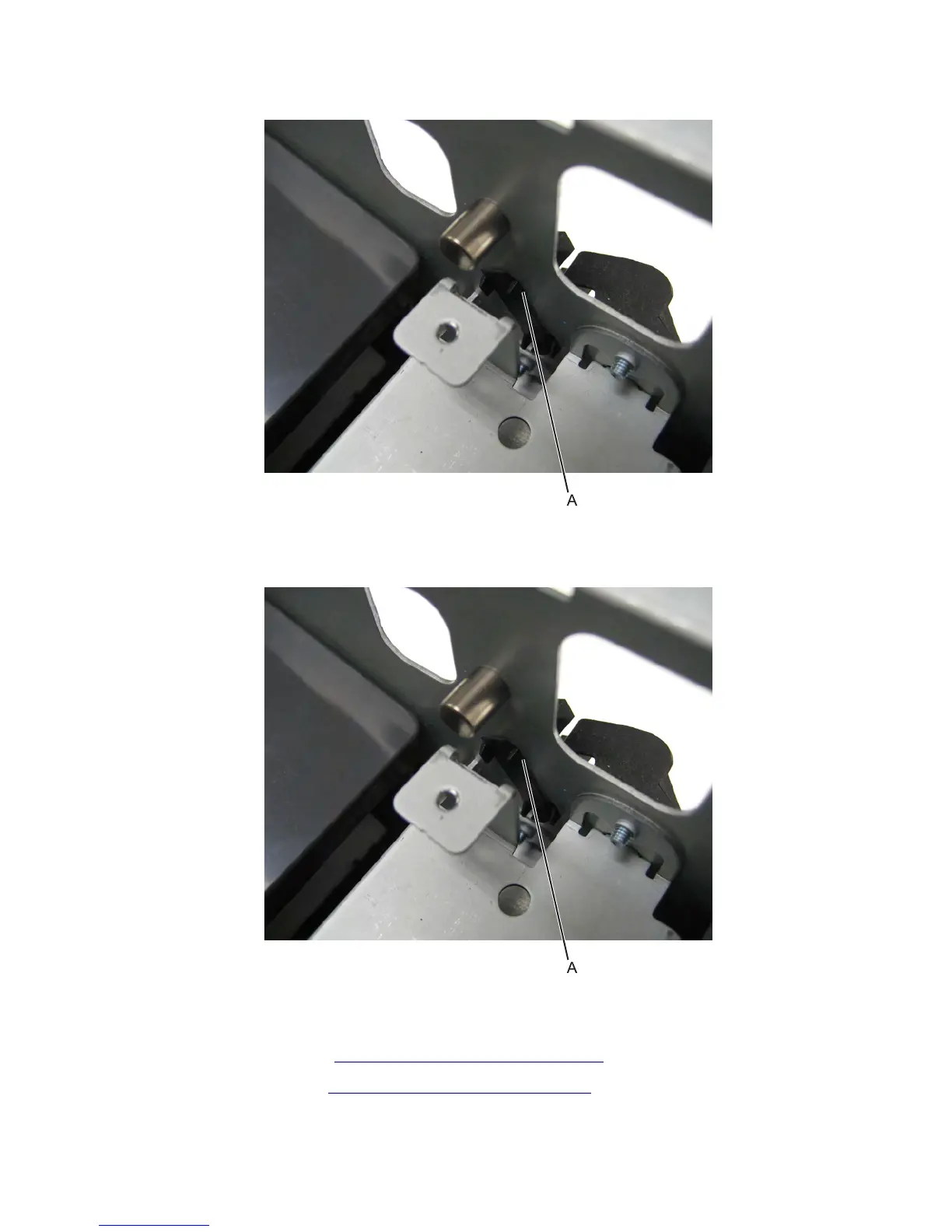

3 Remove the mylar and release the hooks securing the sensor (ADF top door interlock) to the machine.
4 Remove the sensor (ADF top door interlock).
5 Disconnect the cable (A).
ADF tray lift drive removal
1 Remove the ADF front cover. See “ADF front cover removal” on page 587.
2 Remove the ADF rear cover. See “ADF rear cover removal” on page 598.
7463
Repair information
608
