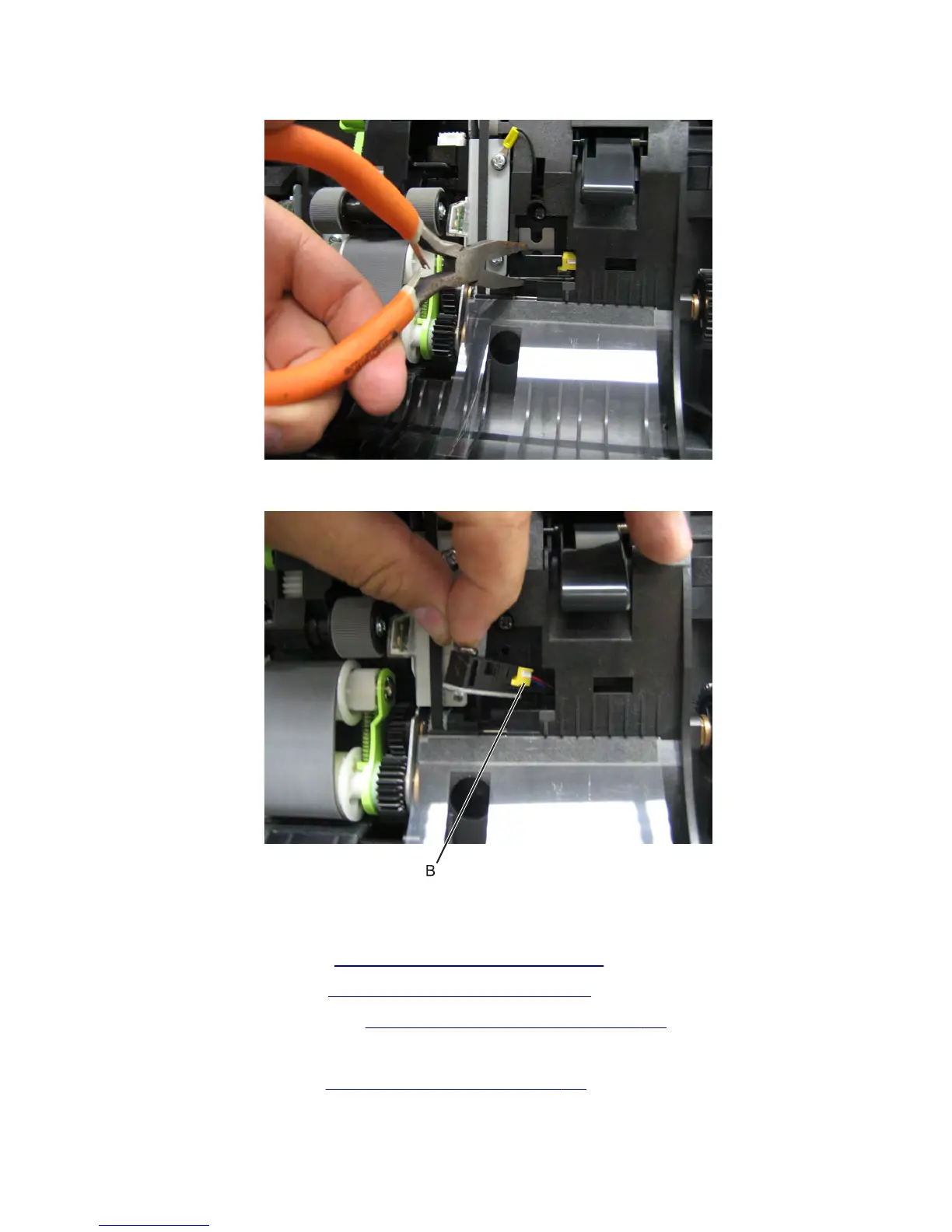

4 Using pliers, gently remove the sensor (ADF gap detect) from the assembly.
5 Disconnect the cable (B).
Sensor (ADF media present) removal
1 Remove the ADF front cover. See “ADF front cover removal” on page 587.
2 Remove the ADF rear cover. See “ADF rear cover removal” on page 598.
3 Remove the ADF left lower cover. See “ADF left lower cover removal” on page 592.
4 Open the ADF door.
5 Remove the ADF input tray. See “ADF input tray removal” on page 589.
