Flatbed scanner front cover removal
Flatbed scanner front cover removal (MX71x)
1 Remove the ADF assembly.

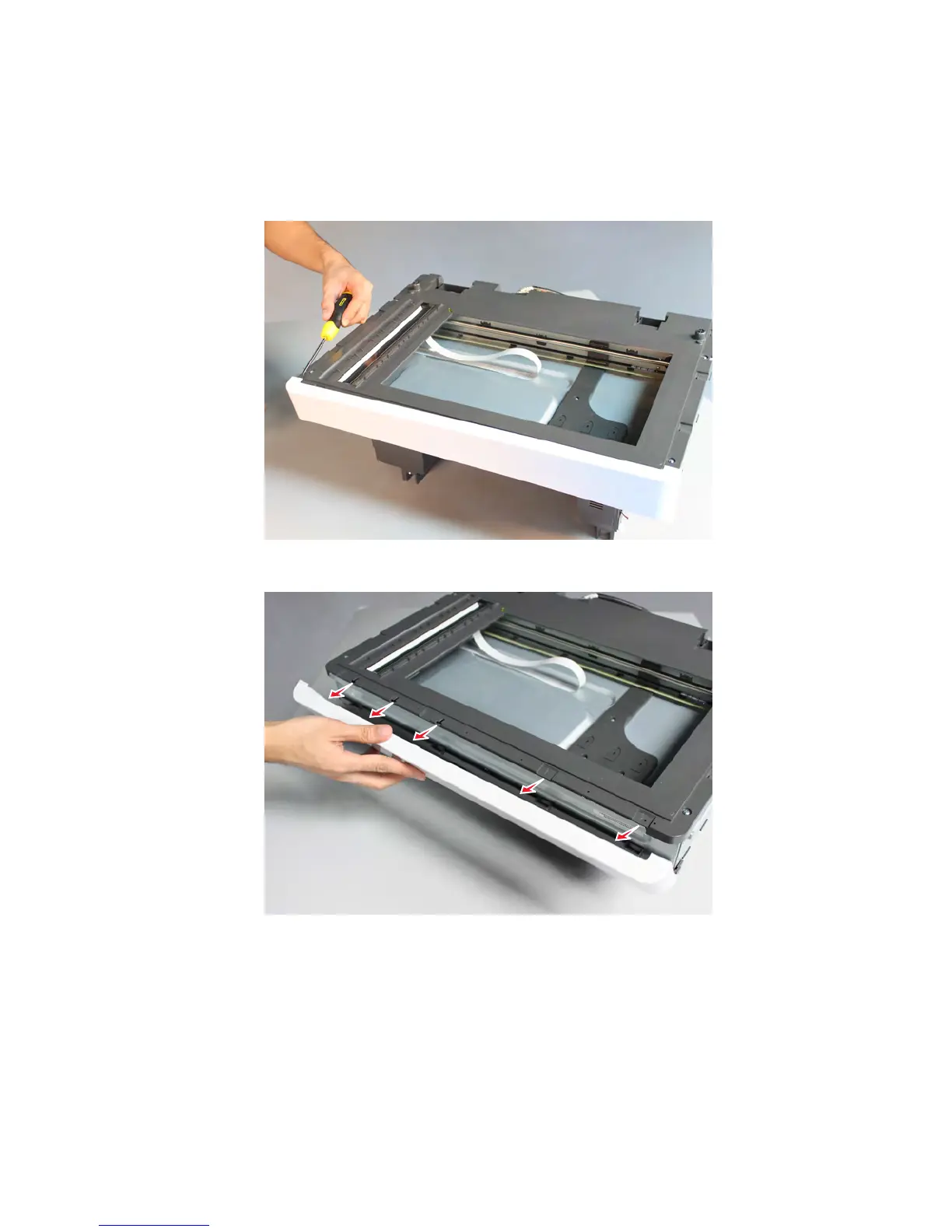

2 Pry the edge of the ADF front cover to disengage the snaps.
3 Unsnap the flatbed front cover from the rest of the tabs on the flatbed scanner glass assembly.
