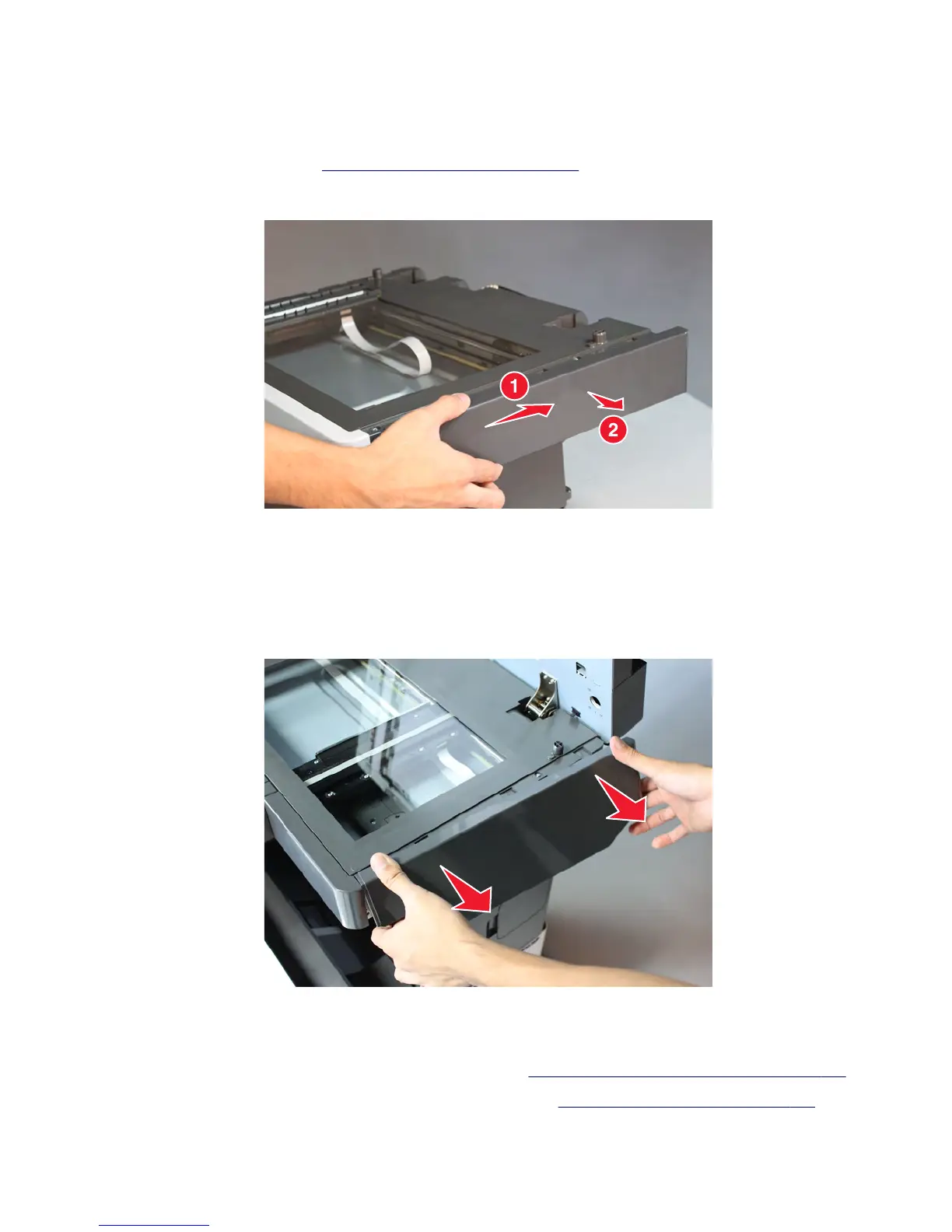

Flatbed scanner right cover removal
Flatbed scanner right cover removal (MX71x)
1 Remove the ADF assembly. See “ADF assembly removal” on page 576.
2 Slide the flatbed right cover to the rear, and then remove the flatbed scanner right cover.
Flatbed scanner right cover removal (MX81x)
1 Open the ADF.
2 Pull to remove the flatbed scanner right cover.
Note: Pull on the rear part of the flatbed scanner right cover firs before removing the entire scanner right cover.
Flatbed scanner CCD removal
1 Remove the ADF/scanner assembly from the base printer. See “ADF/scanner assembly removal” on page 572.
2 Remove the ADF assembly from the flatbed scanner assembly. See “ADF assembly removal” on page 576.
7463
Repair information
634
