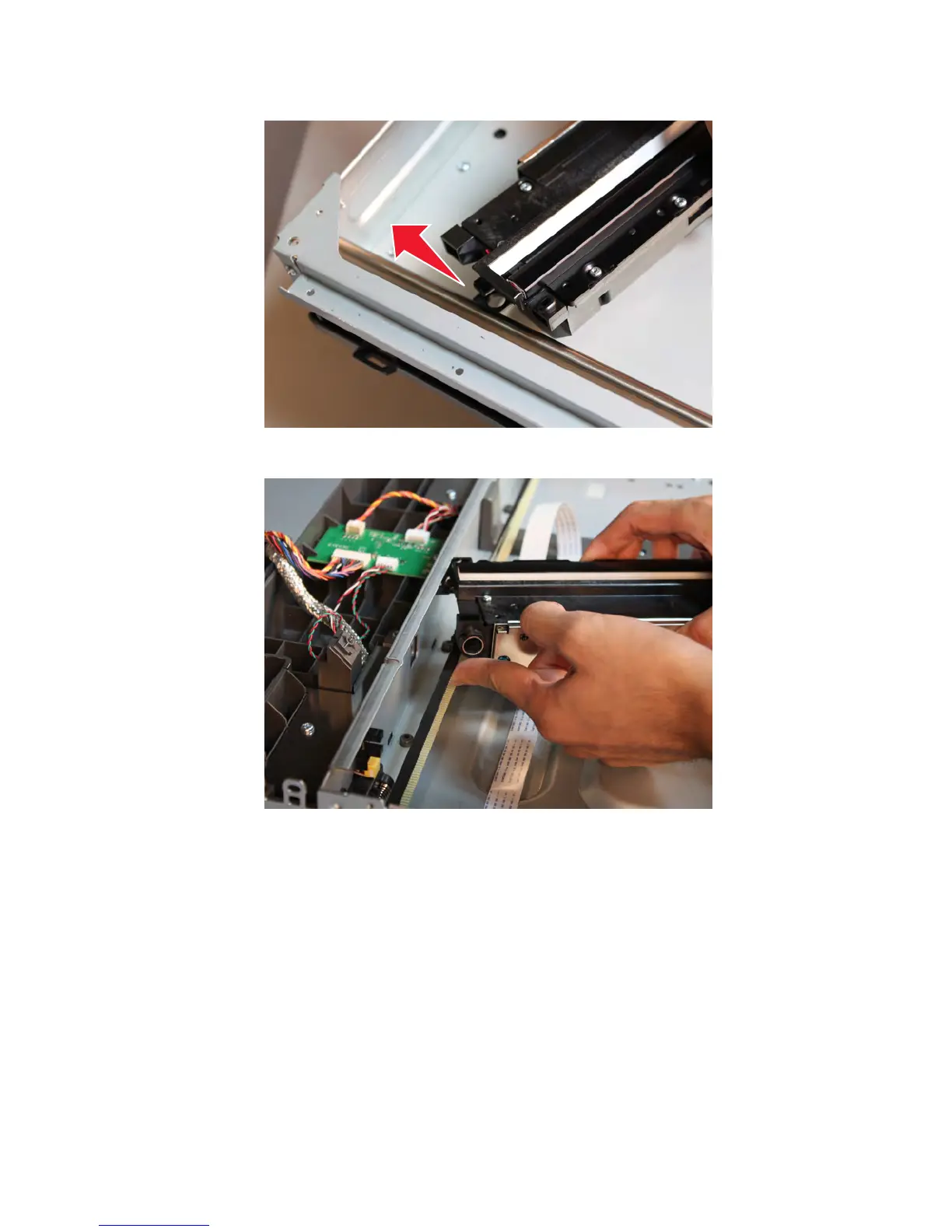

9 Move the flatbed CCD scanner until it exits completely from the other shaft.
10 Release the flatbed CCD scanner from the belt.
Installation note: Make sure that the belt grooves are in full contact with the CCD grooves.
