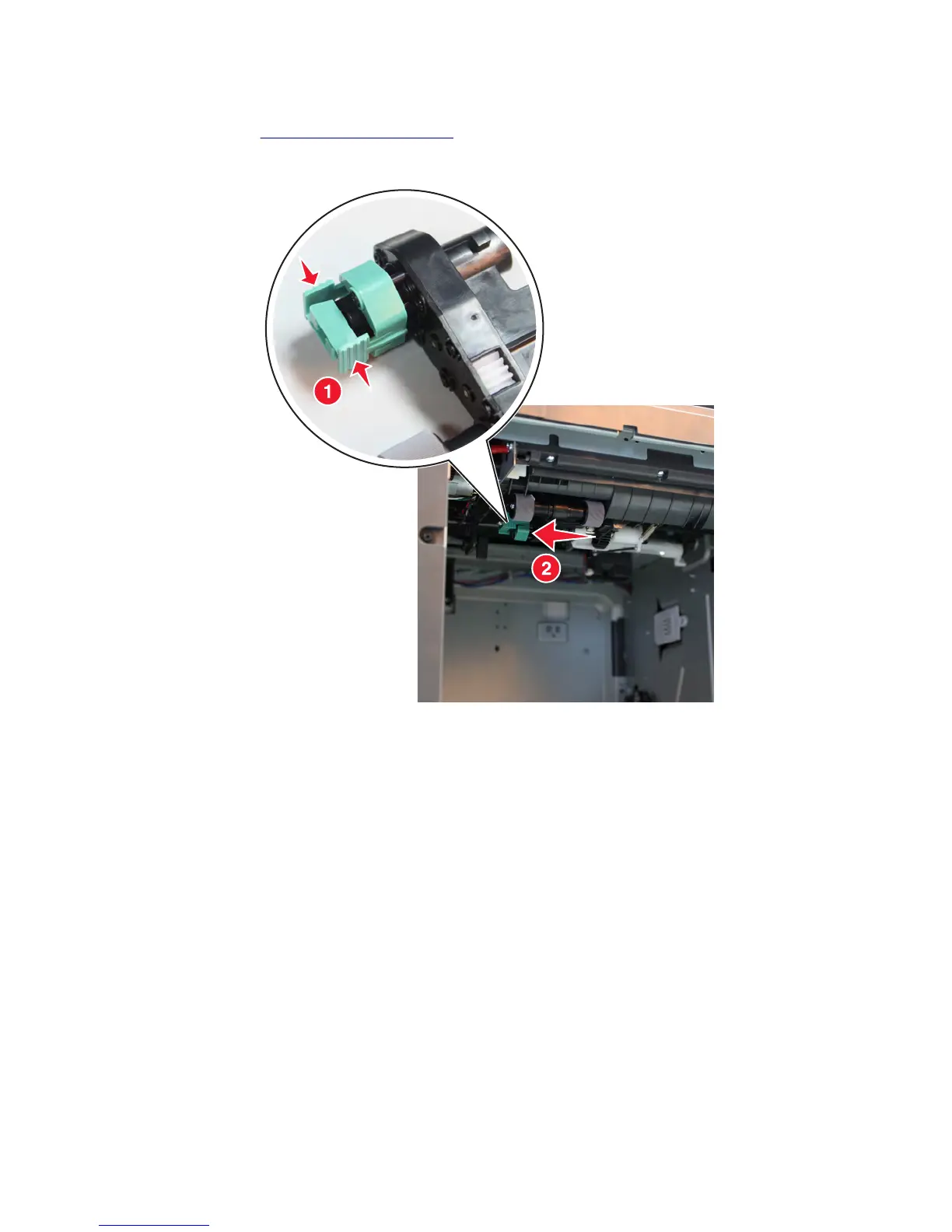

HCIT pick roller assembly removal
1 Remove the HCIT. See “HCIT removal” on page 665.
2 Push the latches inward (1), and pull out the pick roller assembly (2).
7463
Repair information
670
