HCIT rear cover removal
Note: This is not a FRU.

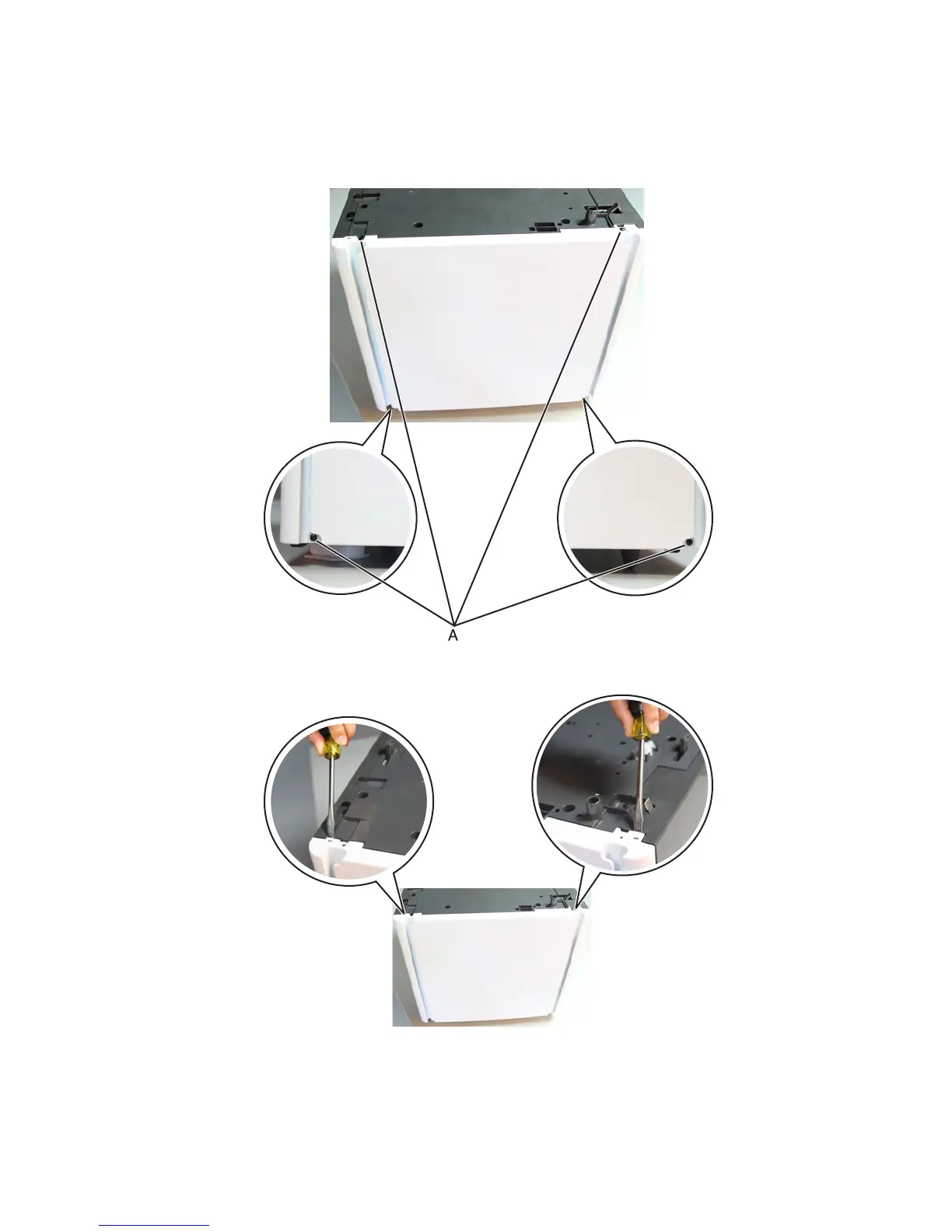

1 Remove the four screws (A) from the rear cover.
2 Flex the cover to release the tabs securing the upper portion.
3 Ease the rear cover off the drawer, and remove.
