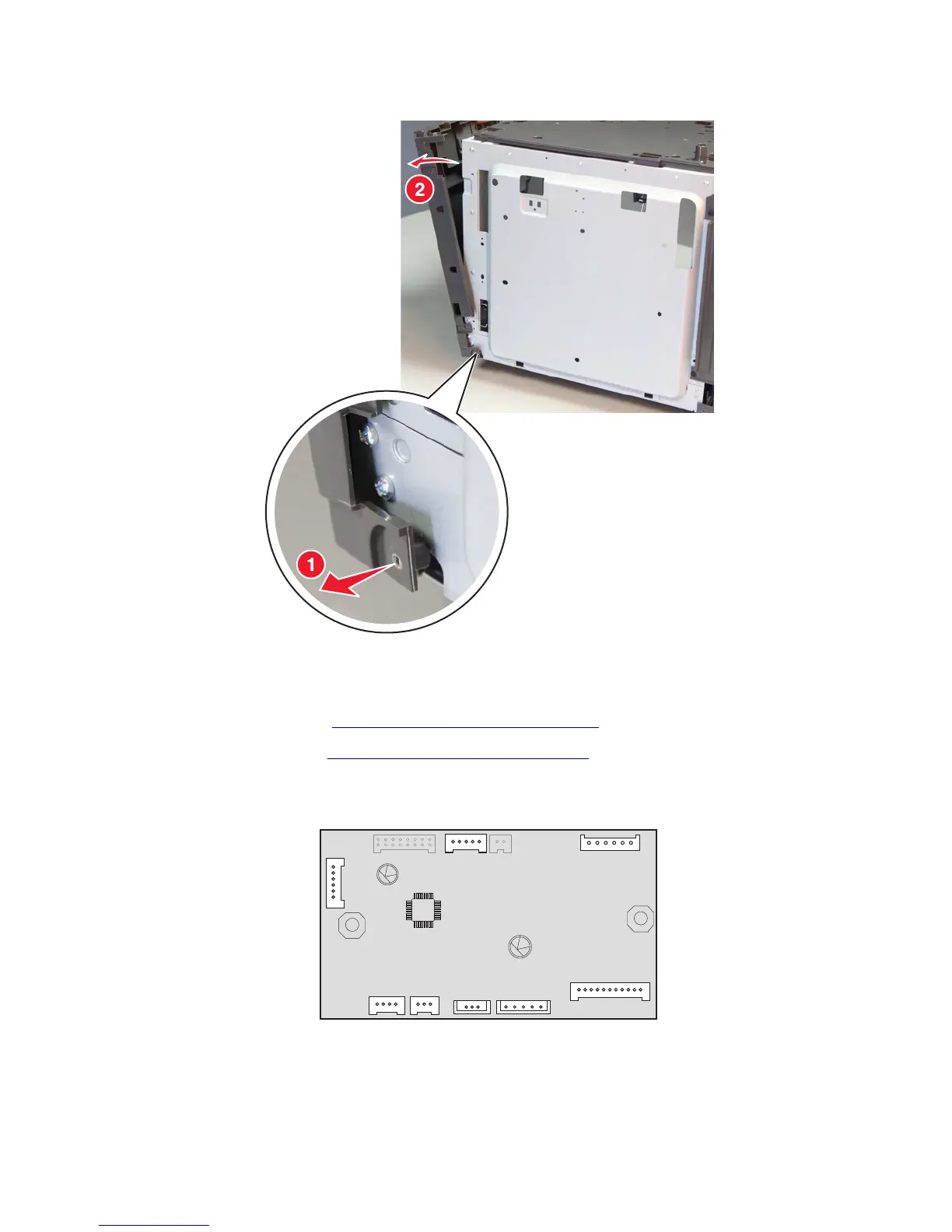

5 Pull the tab to release, then remove the right cover.
HCIT controller board removal
1 Remove the HCIT rear cover. See “HCIT rear cover removal” on page 671.
2 Remove the HCIT left cover. See “HCIT left cover removal” on page 672.
3 Disconnect all the cables (J3, J5, J11, J10, J9, J8, J7 and J1) from the controller board, then remove the two screws
(A).
