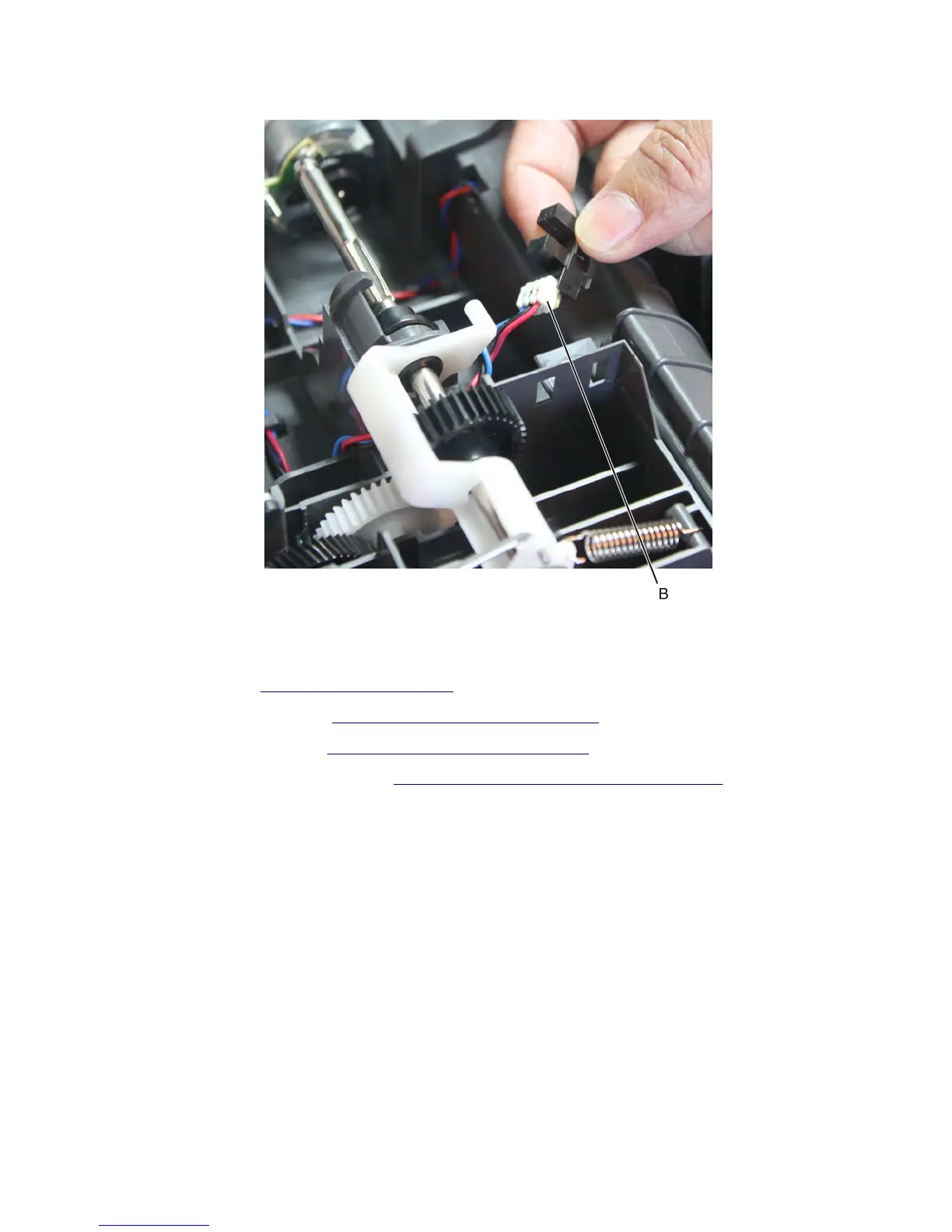

6 Disconnect the cable (B), and remove the sensor.
Sensor (HCIT pick) removal
1 Remove the HCIT. See “HCIT removal” on page 665.
2 Remove the HCIT rear cover. See “HCIT rear cover removal” on page 671.
3 Remove the HCIT left cover. See “HCIT left cover removal” on page 672.
4 Remove the HCIT top cover assembly. See “HCIT top cover assembly removal” on page 677.
