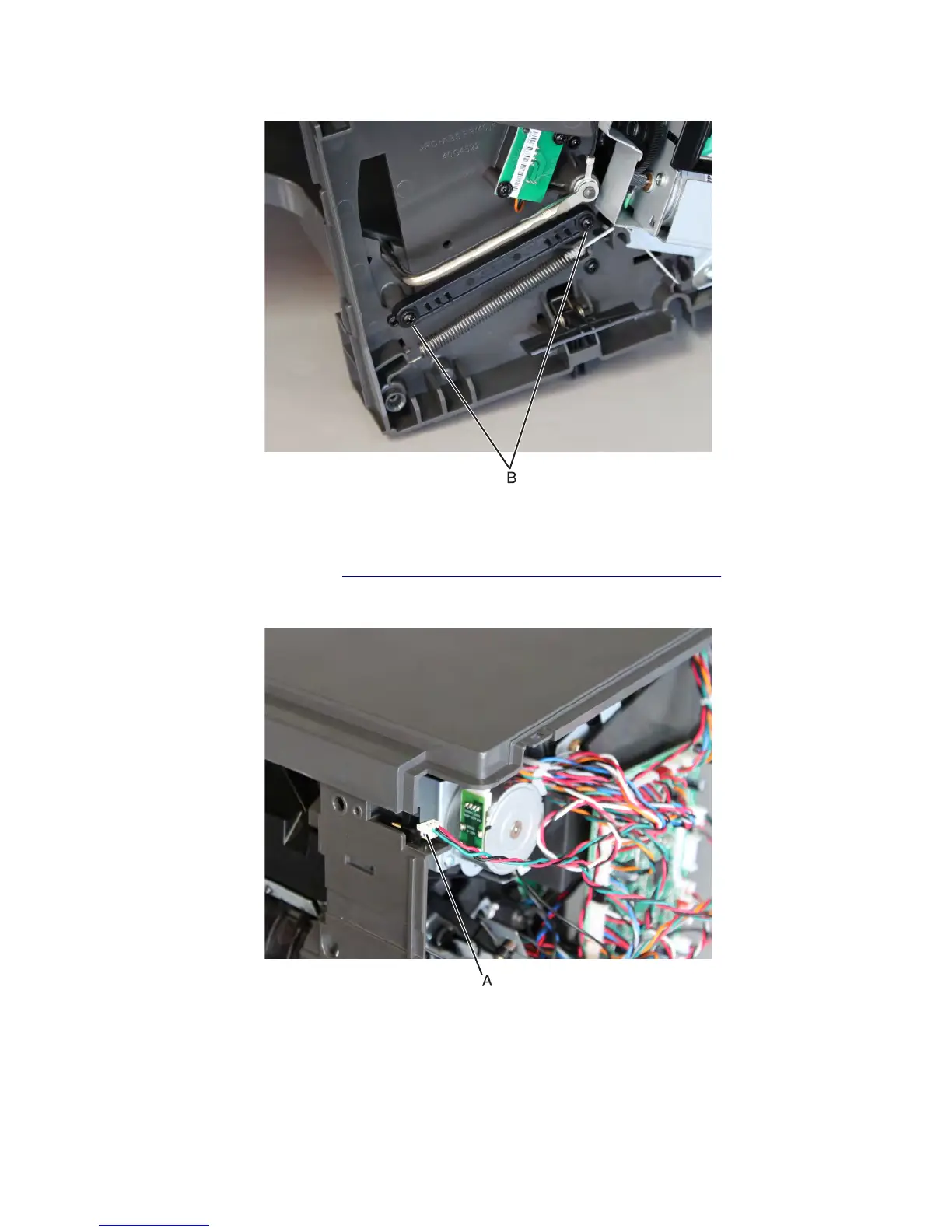

3 Remove the two screws (B), and then remove the link.
Sensor (stapler/stacker rear door interlock) removal
1 Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726.
2 Disconnect the cable (A) from the sensor.
3 Release the latches securing the sensor to the frame, and then remove the sensor.
