Tamper motor (right) removal
1 Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726.
2 Remove the stapler right cover. See “Stapler right cover removal” on page 782.
3 Remove the stapler top cover. See “Stapler/offset stacker top cover removal” on page 728.

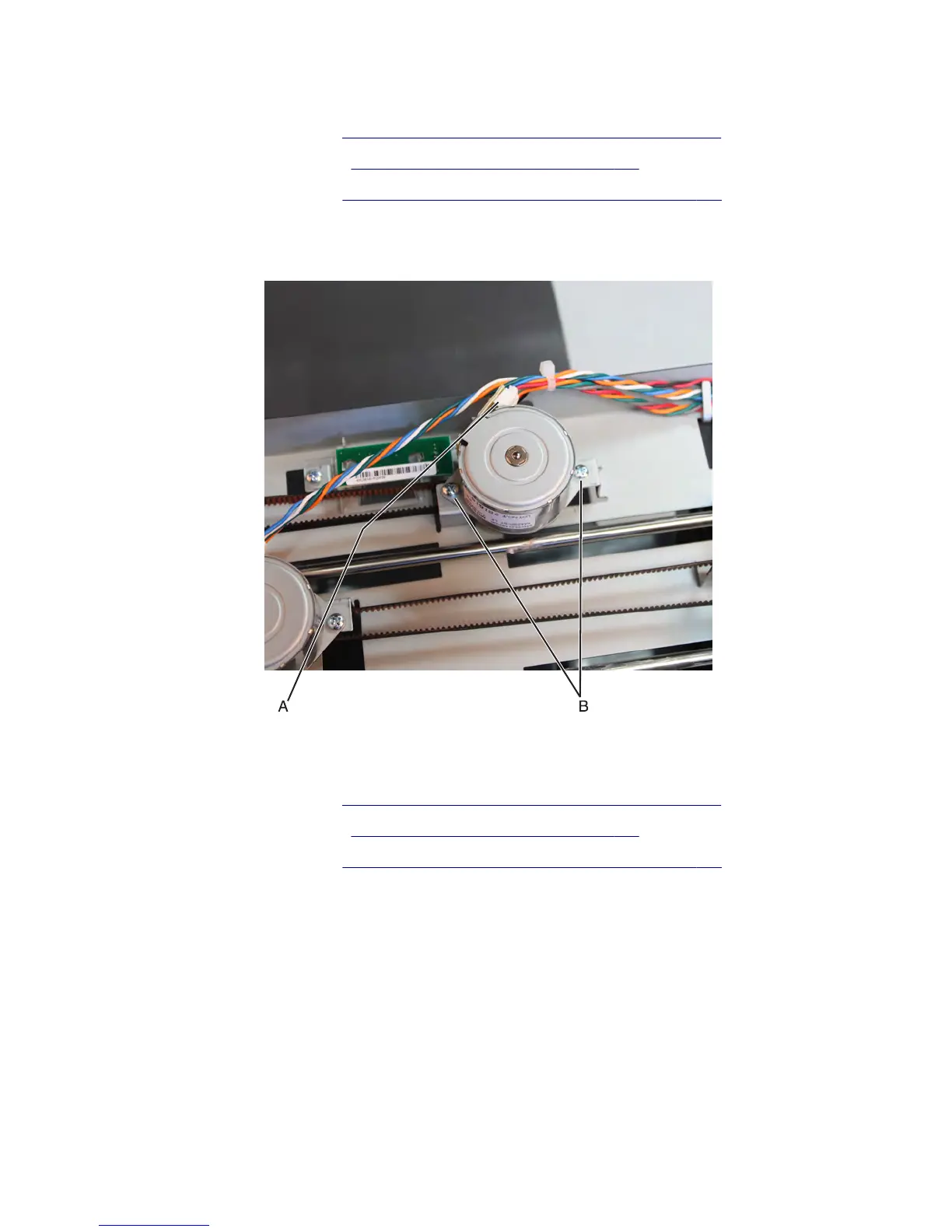

4 Disconnect the tamper motor cable (A).
5 Remove the two screws (B), then remove the motor.
Tamper motor (left) removal
1 Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726.
2 Remove the stapler right cover. See “Stapler right cover removal” on page 782.
3 Remove the stapler top cover. See “Stapler/offset stacker top cover removal” on page 728.
4 Disconnect the tamper motor cable (A).
