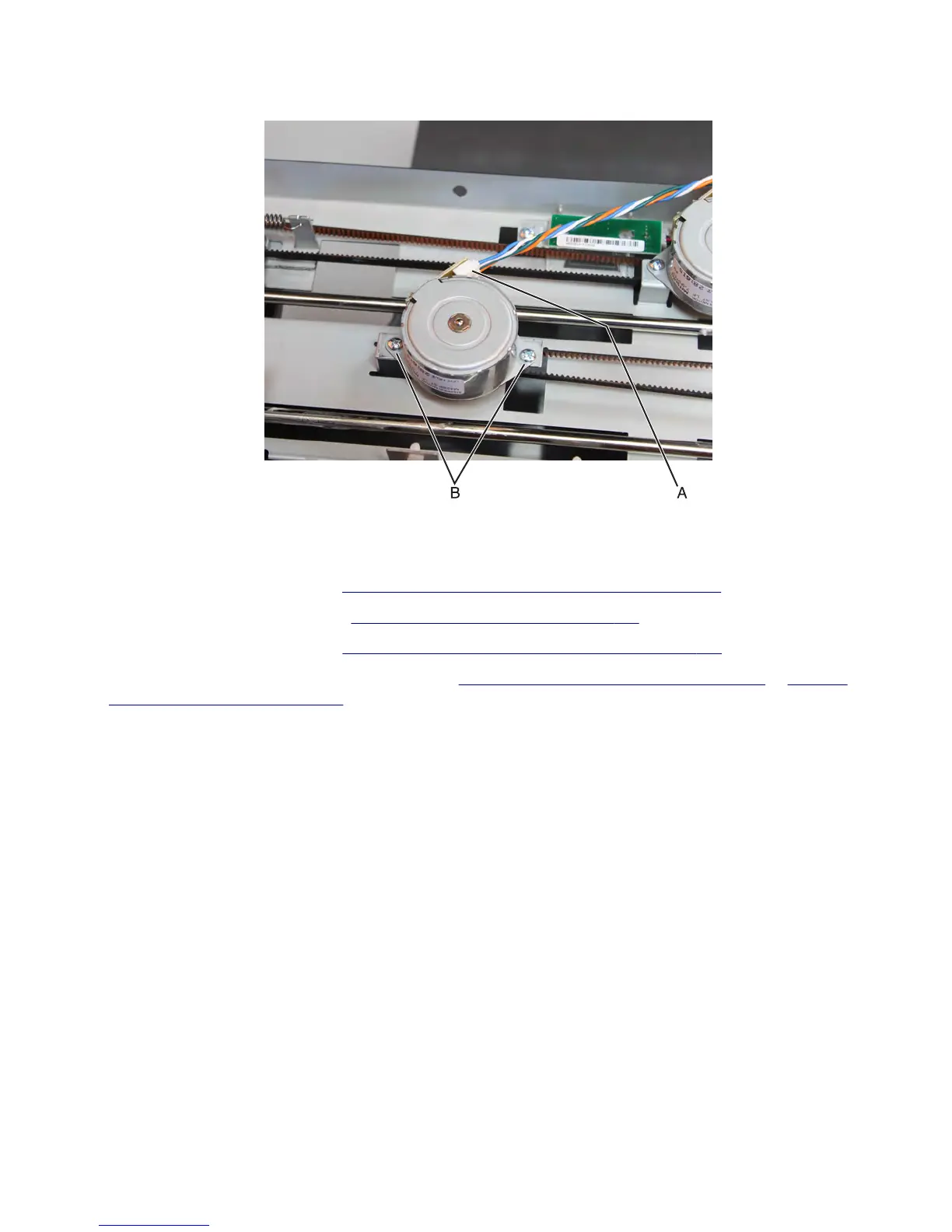

5 Remove the two screws (B), then remove the motor.
Tamper drive belt removal
1 Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726.
2 Remove the stapler right cover. See “Stapler right cover removal” on page 782.
3 Remove the stapler top cover. See “Stapler/offset stacker top cover removal” on page 728.
4 Remove the tamper motor engaged to the belt. See “Tamper motor (right) removal” on page 749 or “Tamper
motor (left) removal” on page 749.
7463
Repair information
