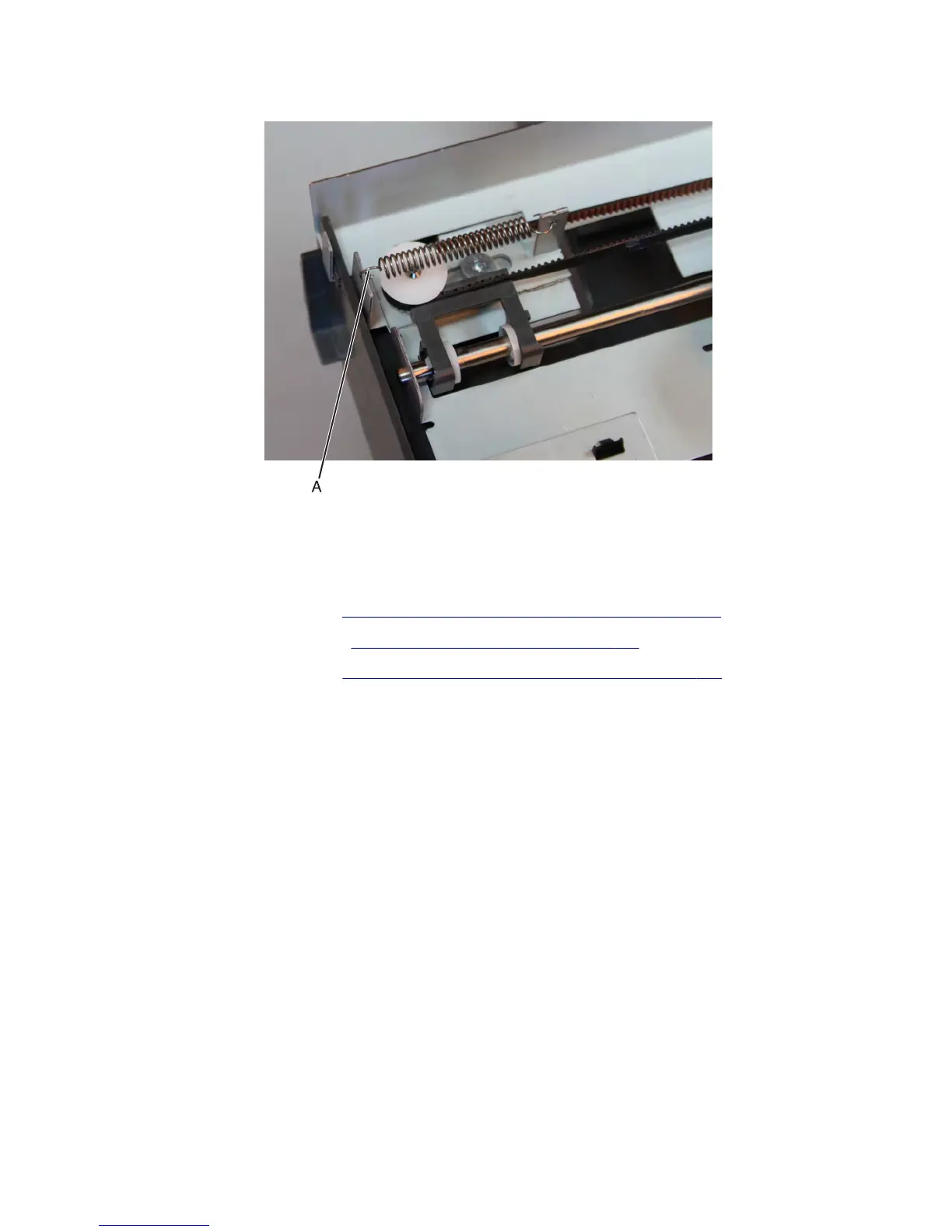

5 Unhook the spring (A) to loosen and release the belt.
6 Remove the tamper drive belt.
Stapler/offset stacker output bin LED removal
1 Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726.
2 Remove the stapler right cover. See “Stapler right cover removal” on page 782.
3 Remove the stapler top cover. See “Stapler/offset stacker top cover removal” on page 728.
