Stapler/offset stacker controller board removal
1 Remove the left cover. See “Stapler/offset stacker left cover removal” on page 726.

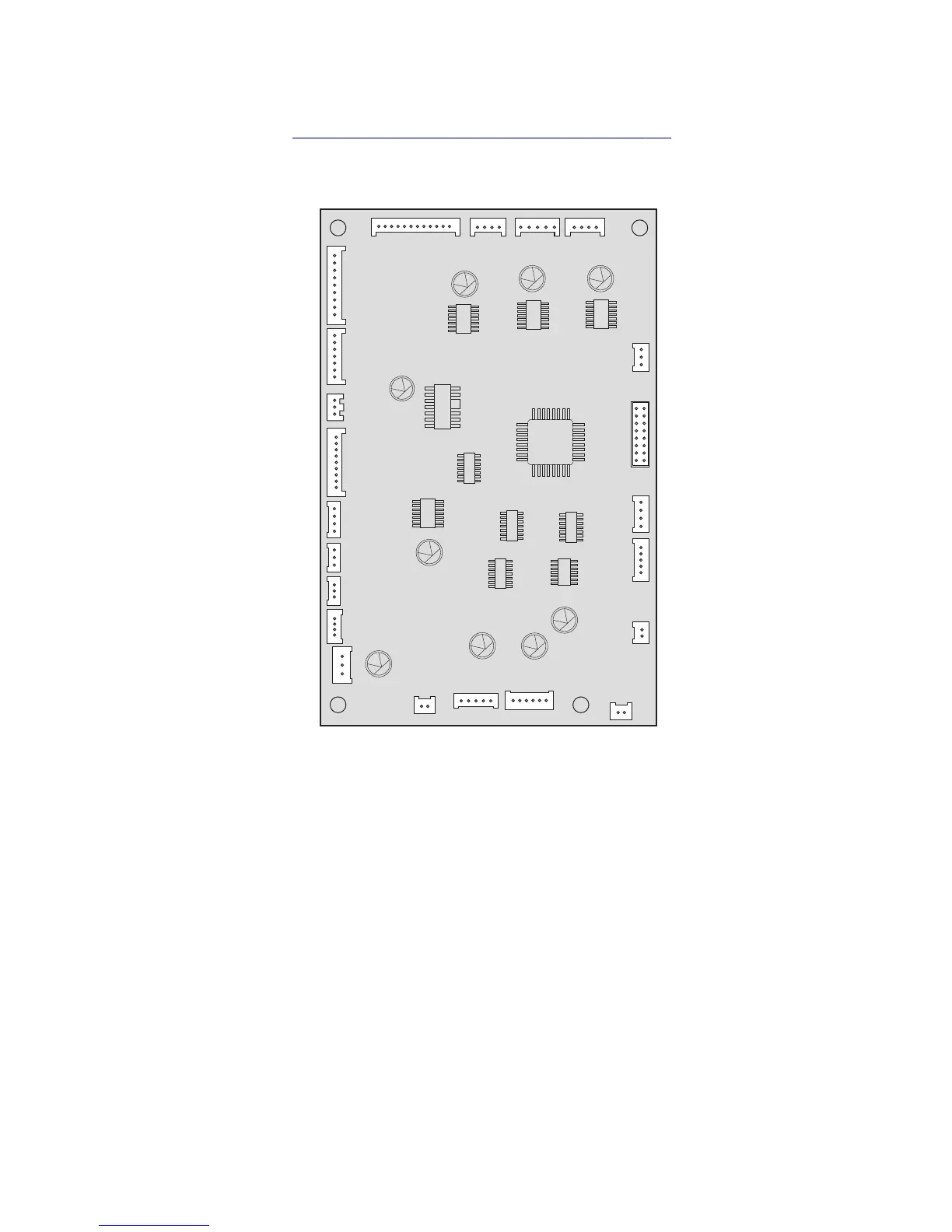

2 Disconnect all the cables (J11, J5, J6, J4, J26, J24, J22, J23, J17, J3, J2, J1, J18, J15, J1, J12, J14, J8, J20, J9, and J7),
then remove the three screws (A) from the controller board.
