Stapler/offset stacker diverter motor removal
1 Remove the stapler left cover. See “Stapler/offset stacker left cover removal” on page 726.

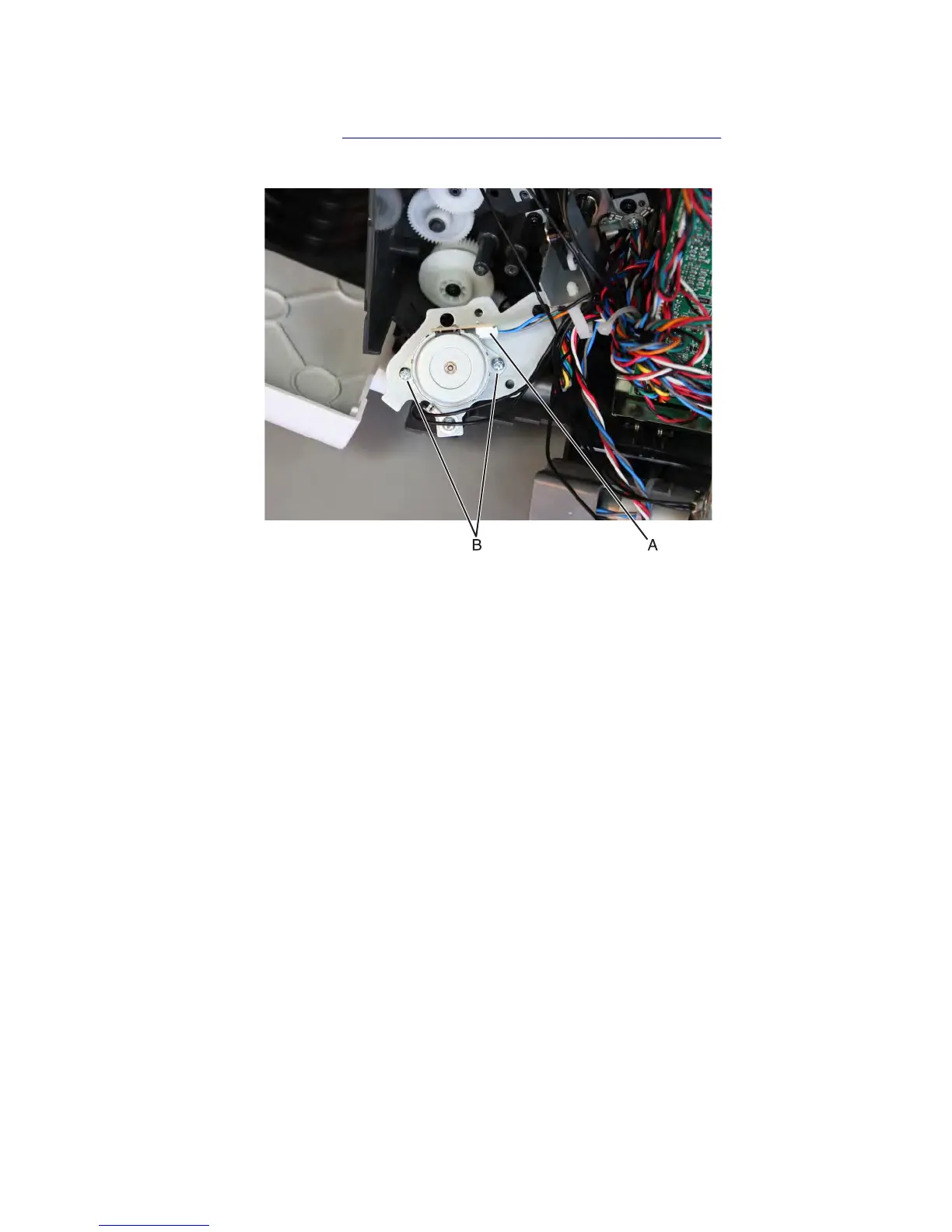

2 Disconnect the motor cable (A), and then remove the two screws (B).
3 Remove the motor from the bracket.
