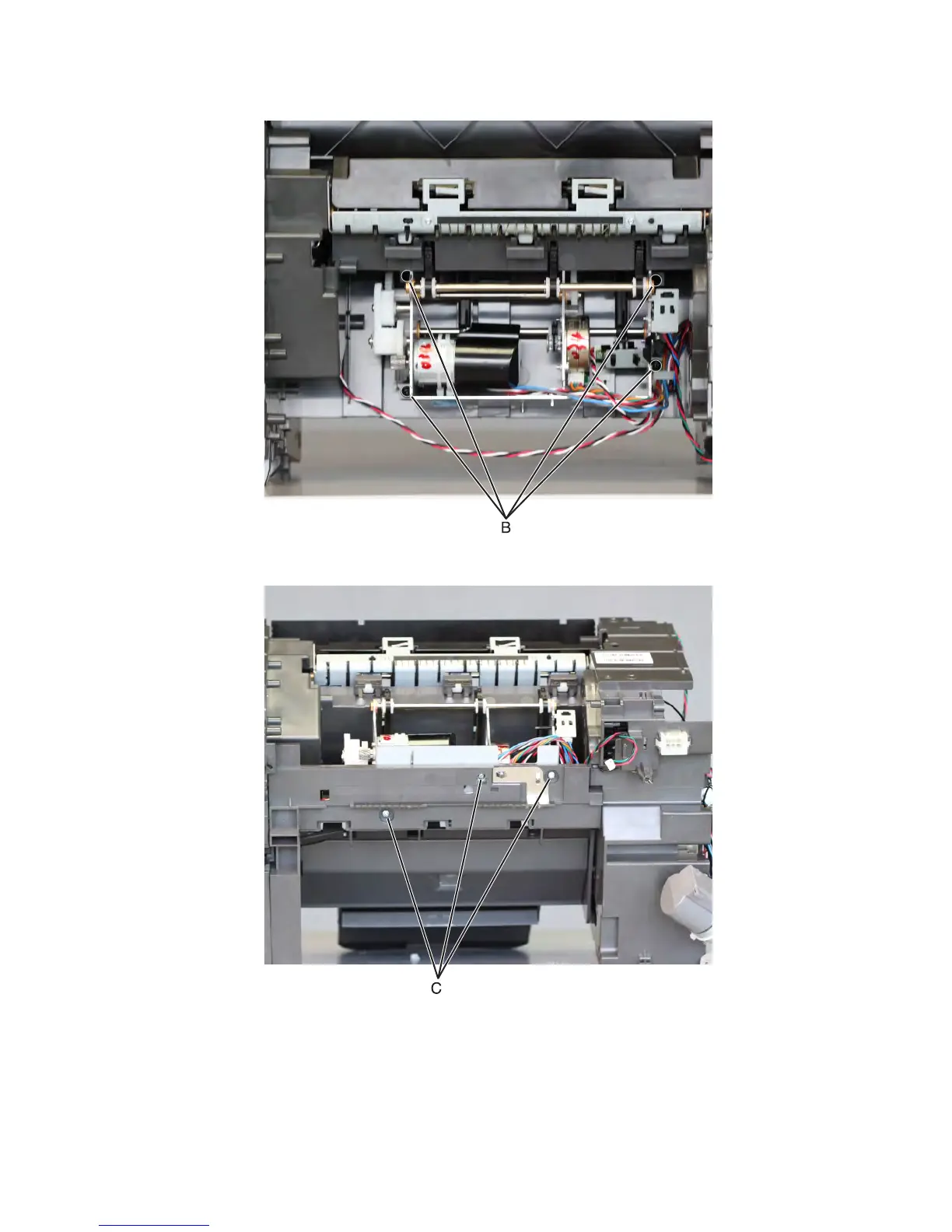

8 Remove the four screws (B) from the motor assembly frame.
9 Remove the three screws (C) securing the bottom part of the motor assembly.
10 Release the cables off their guides.
Note: Pay attention to the original routing of the cables.
11 Pull the motor assembly away from the machine.
