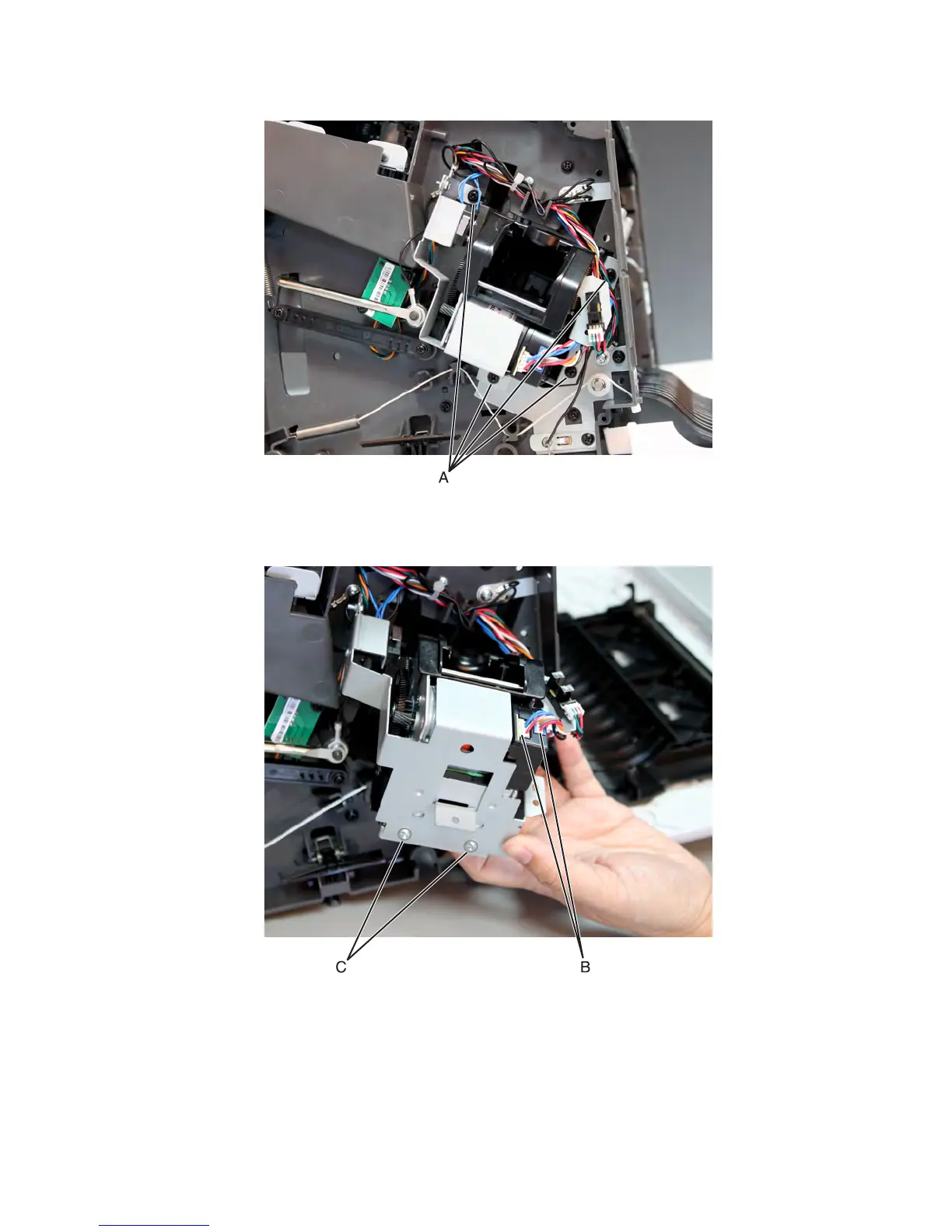

4 Remove the four screws (A) securing the stapler carriage frame.
5 Disconnect the cables (B) from the stapler carriage assembly.
6 Lift the stapler carriage frame, then remove the two screws from the stapler carriage assembly (C).
7 Lift the stapler carriage to access the screws securing the limit switch.
