Mailbox diverter plunger assembly removal
1 Remove the mailbox left cover. See “Mailbox left cover removal” on page 798.
2 Remove the mailbox rear door. See “Mailbox rear door removal” on page 791.

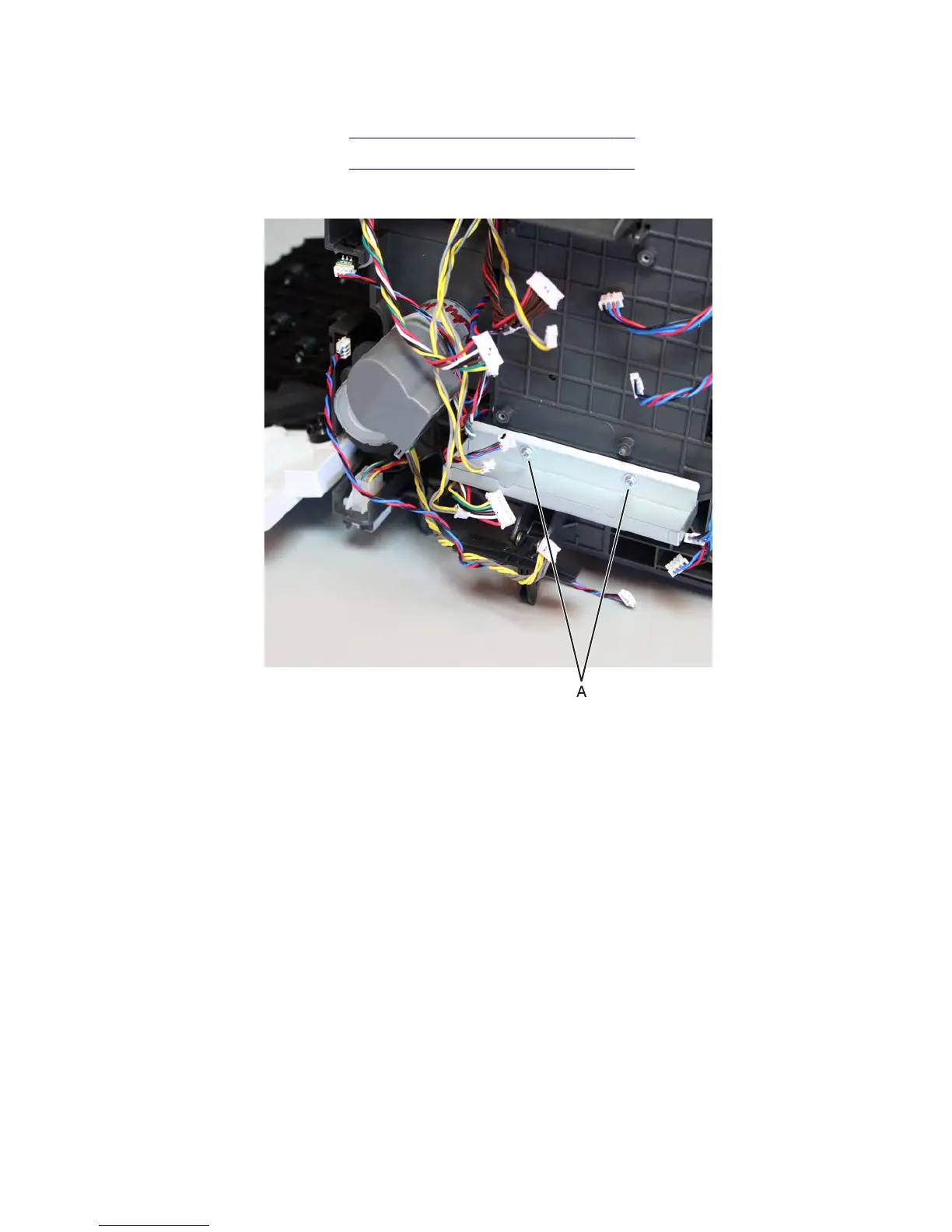

3 Remove the two screws (A), and then remove the shield.
