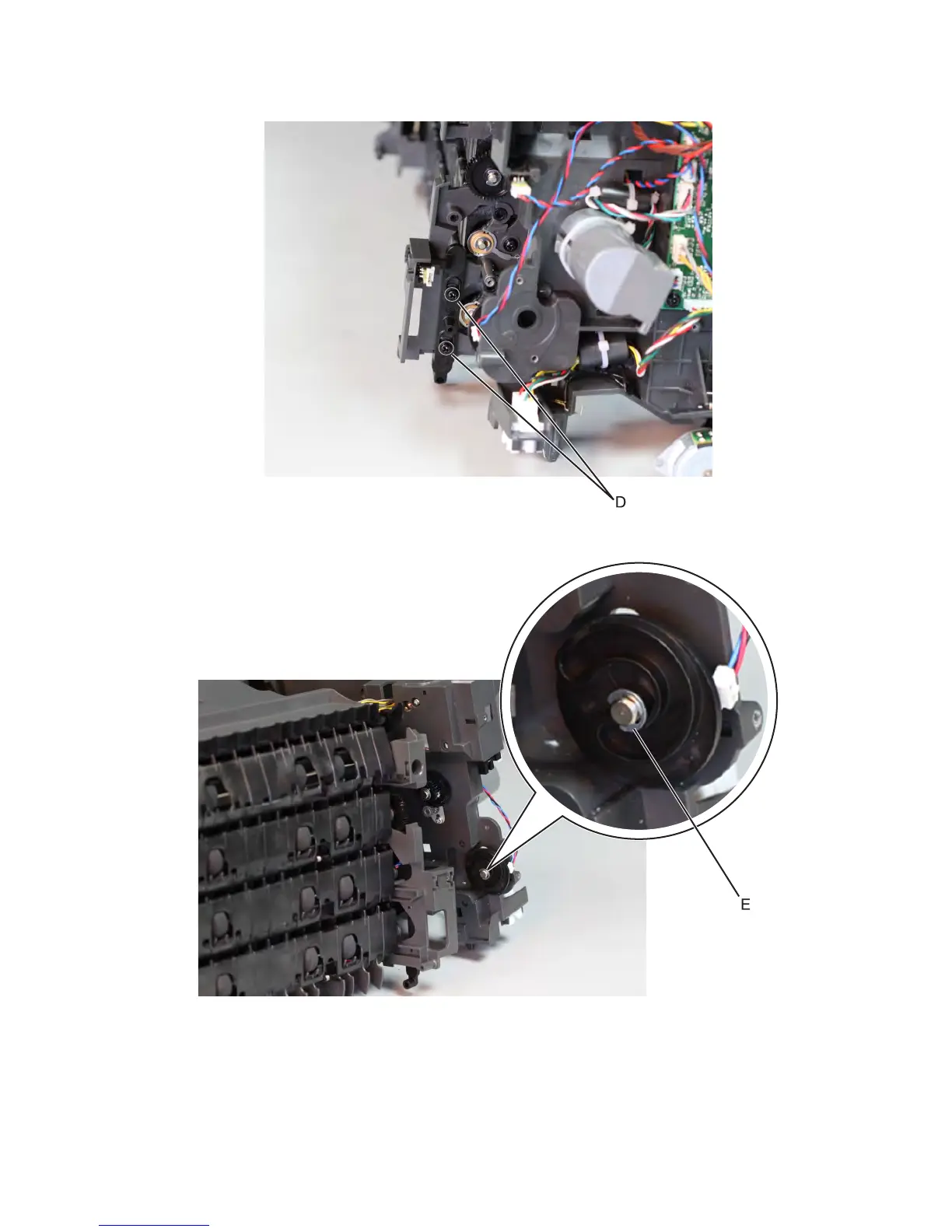

6 Remove the two screws (D), and then remove the diverter plunger.
7 Remove the E-clip (E) to release the cam, and then remove the diverter cam.
7463
Repair information
808
