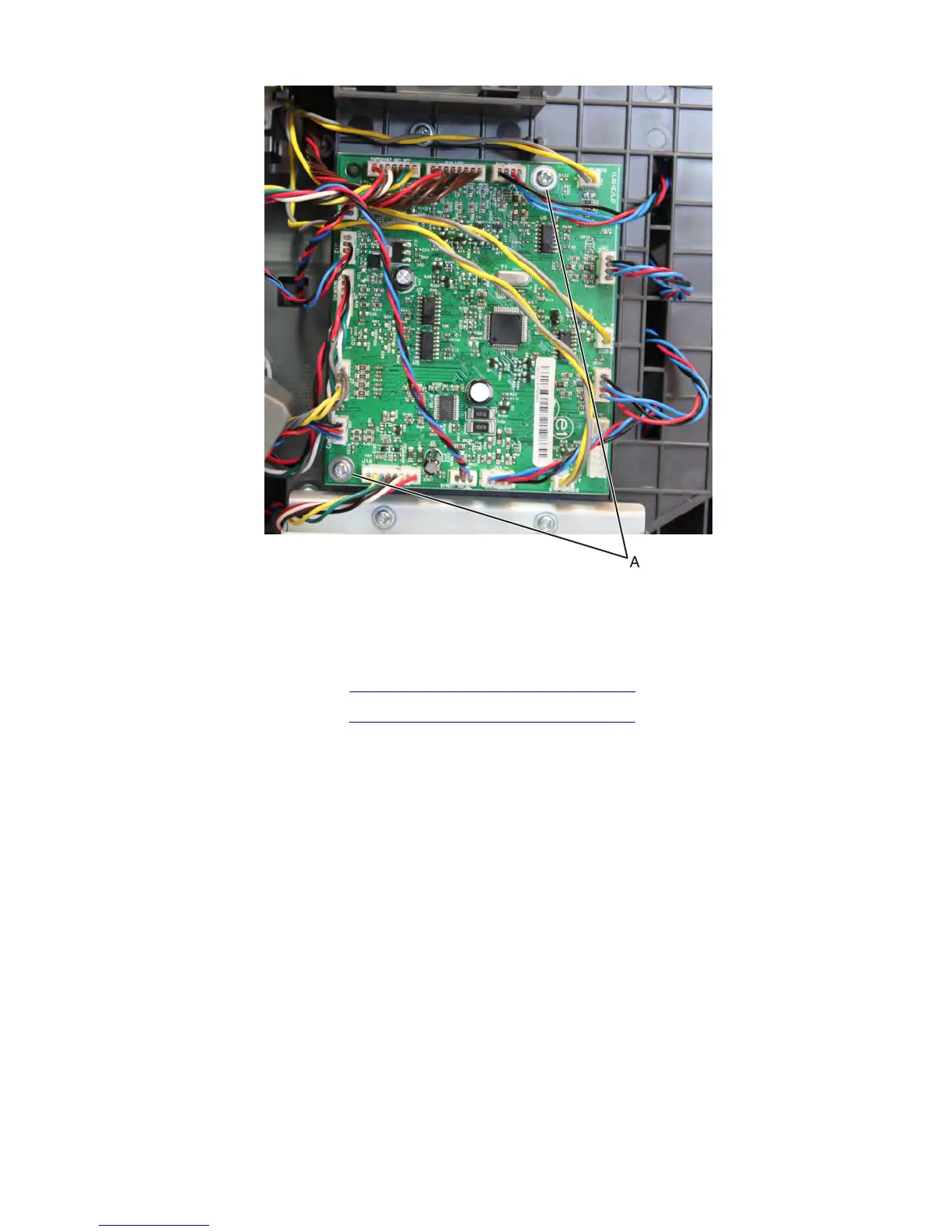

4 Remove the controller board.
Sensor (mailbox diverter plunger HP) removal
1 Remove the mailbox top cover. See “Mailbox top cover removal” on page 791.
2 Remove the mailbox left cover. See “Mailbox left cover removal” on page 798.
7463
Repair information
810
