Sensor (pick roller position) removal
1 Remove the right cover. See “Right cover removal (MX71x)” on page 438.
2 Remove the rear lower cover. See “Rear lower cover removal” on page 551.
3 Remove the LVPS. See “LVPS removal” on page 445.
4 Remove the left cover. See “Left cover removal (MX71x)” on page 416.
5 Remove the board housing. See “Board housing removal” on page 431.
6 Remove the pick roller assembly. See “Pick roller assembly removal” on page 541.
7 Remove the media feeder. See “Media feeder removal” on page 429.

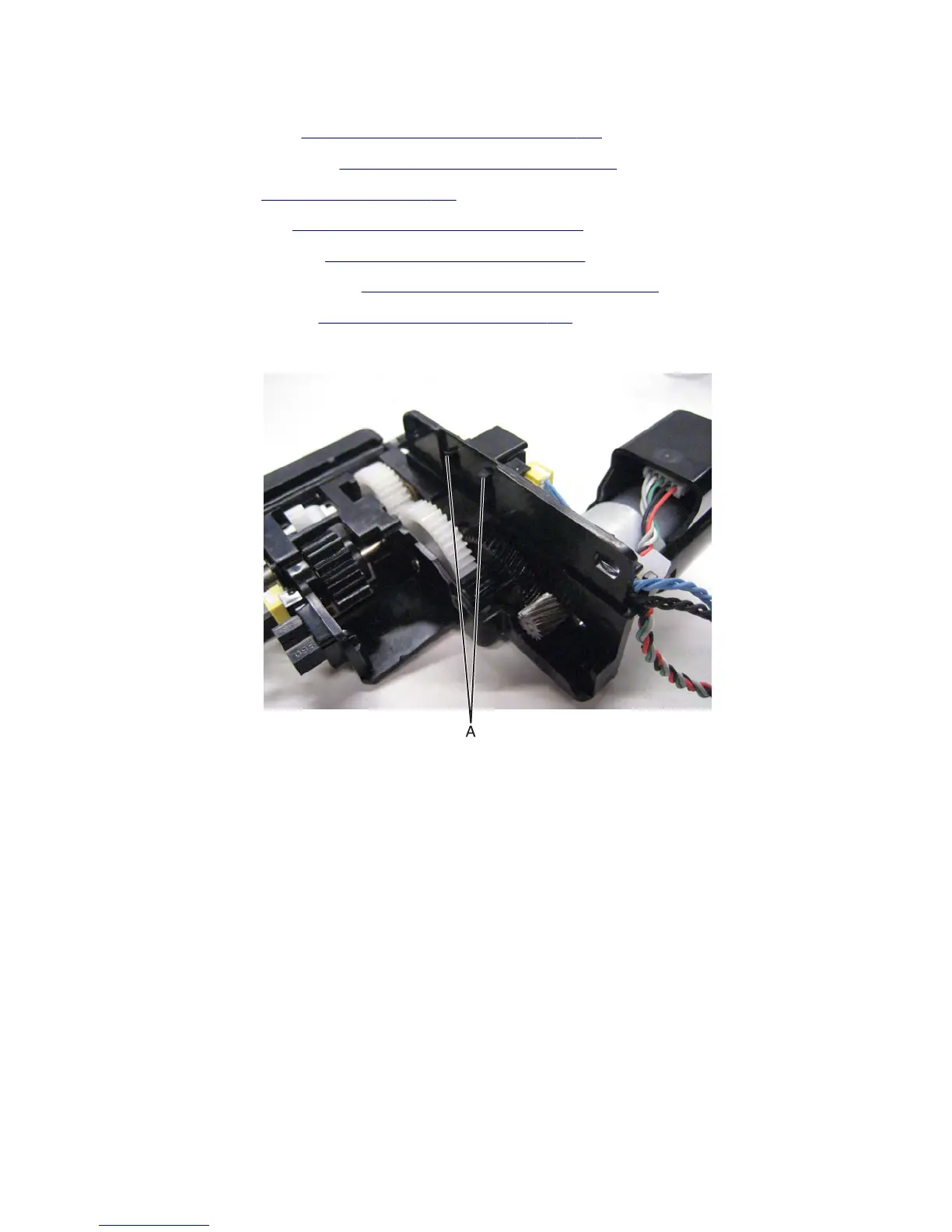

8 Release the hooks (A) securing the sensor (pick roller position) to the assembly.
9 Remove the sensor (pick roller position).
