Warning—Potential Damage: Controller board electronic components are easily damaged by static
electricity. Touch a metal surface on the printer before touching any controller board electronic components
or connectors.
1 Access the controller board.
For more information, see
“Accessing the controller board” on page 28.
2 Unpack the optional card.
Warning—Potential Damage: Avoid touching the connection points along the edge of the card.

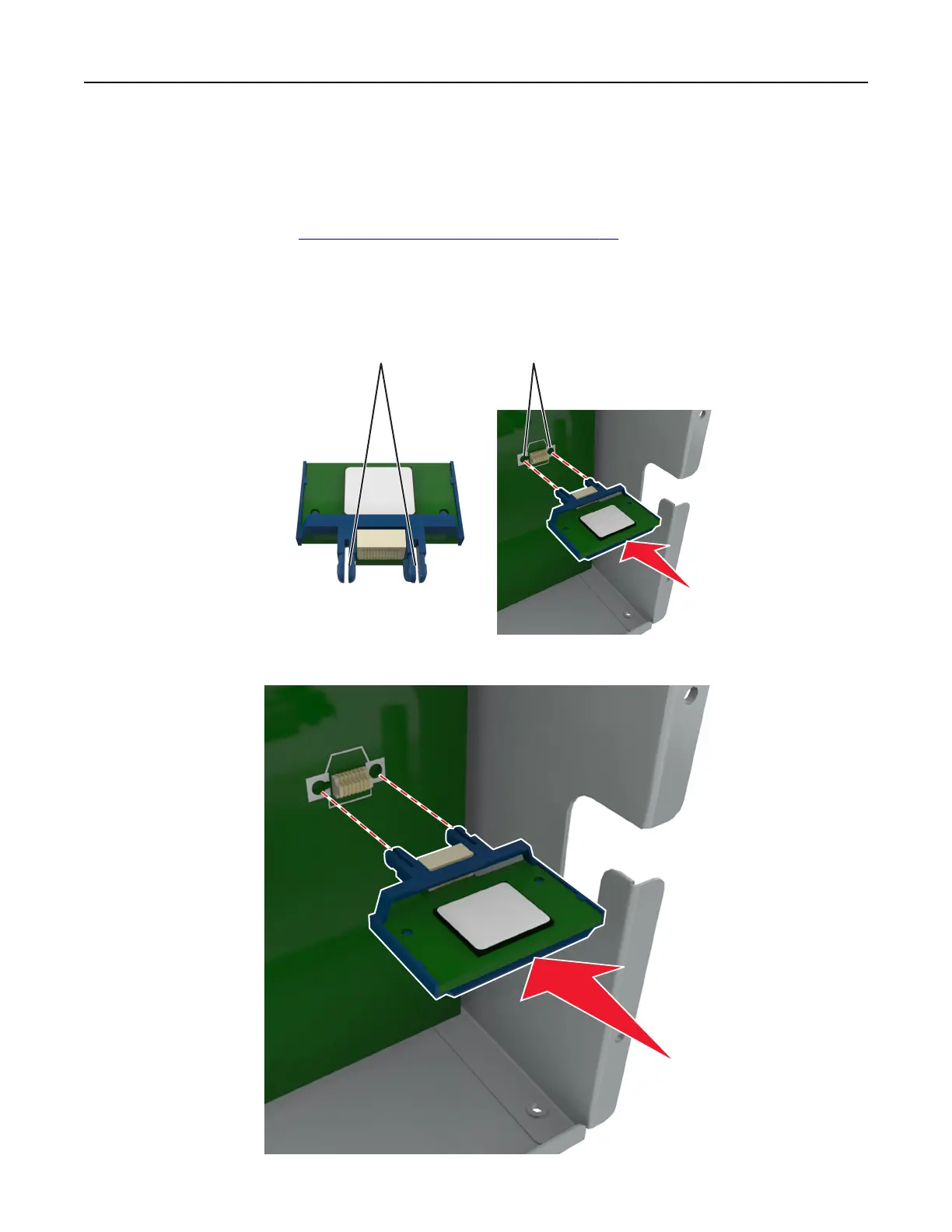

3 Holding the card by its sides, align the plastic pins (1) on the card with the holes (2) on the controller board.
2
1
4 Push the card
firmly
into place as shown in the illustration.
Additional printer setup 34
