8

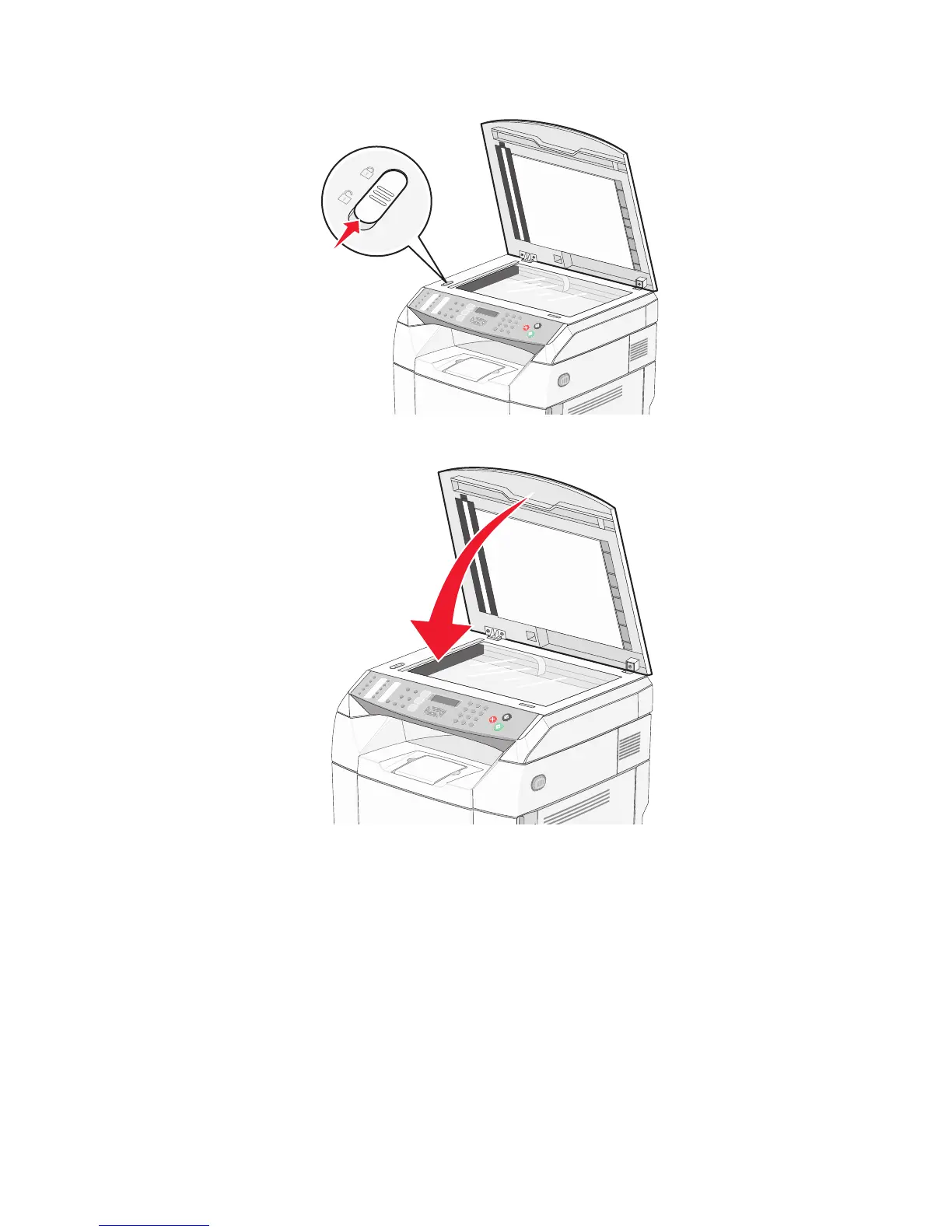

Move the Scanner lock
swit
ch to the locked position.
9
Close the sca
nner cover.
Removing the printer fr
om the 530-sheet drawer
1
Turn the printer off, and
then unplug the power cord from the wall outlet.
2
Disconnect all cable
s from the back of the printer.
109
108
110
