negative electrical charge of the inner conductive layer of the drum and the positive electrical charge of the
paper.
Cleaning

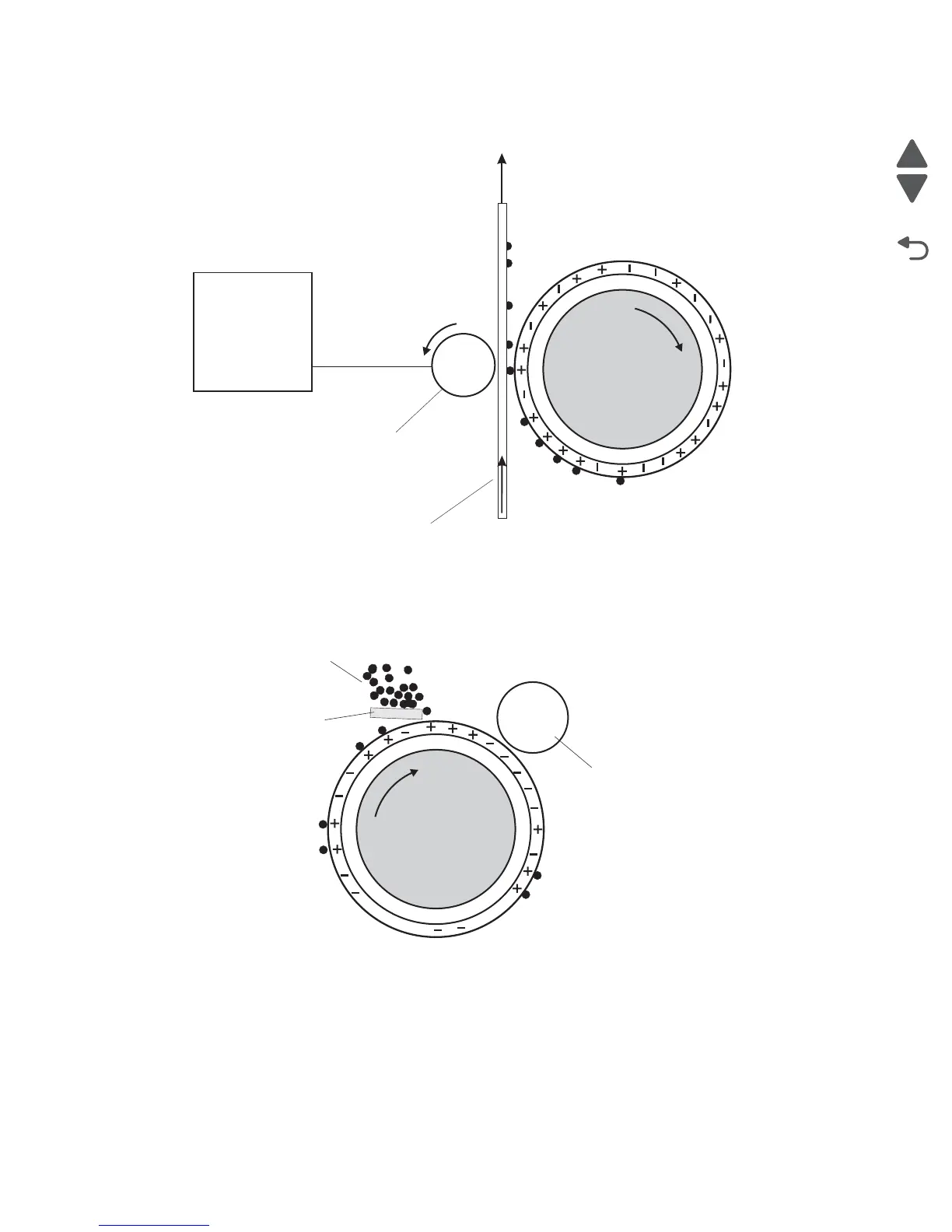

The Cleaning Blade removes any toner that remains on the drum after the transfer process. The toner that the
Cleaning Blade removes is collected inside the sealed PC Cartridge.
Sheet of paper
HVPS
-VDC
-VDC
DRUM
Transfer roll
Cleaning Blade
Used Toner
Charge roll
DRUM
