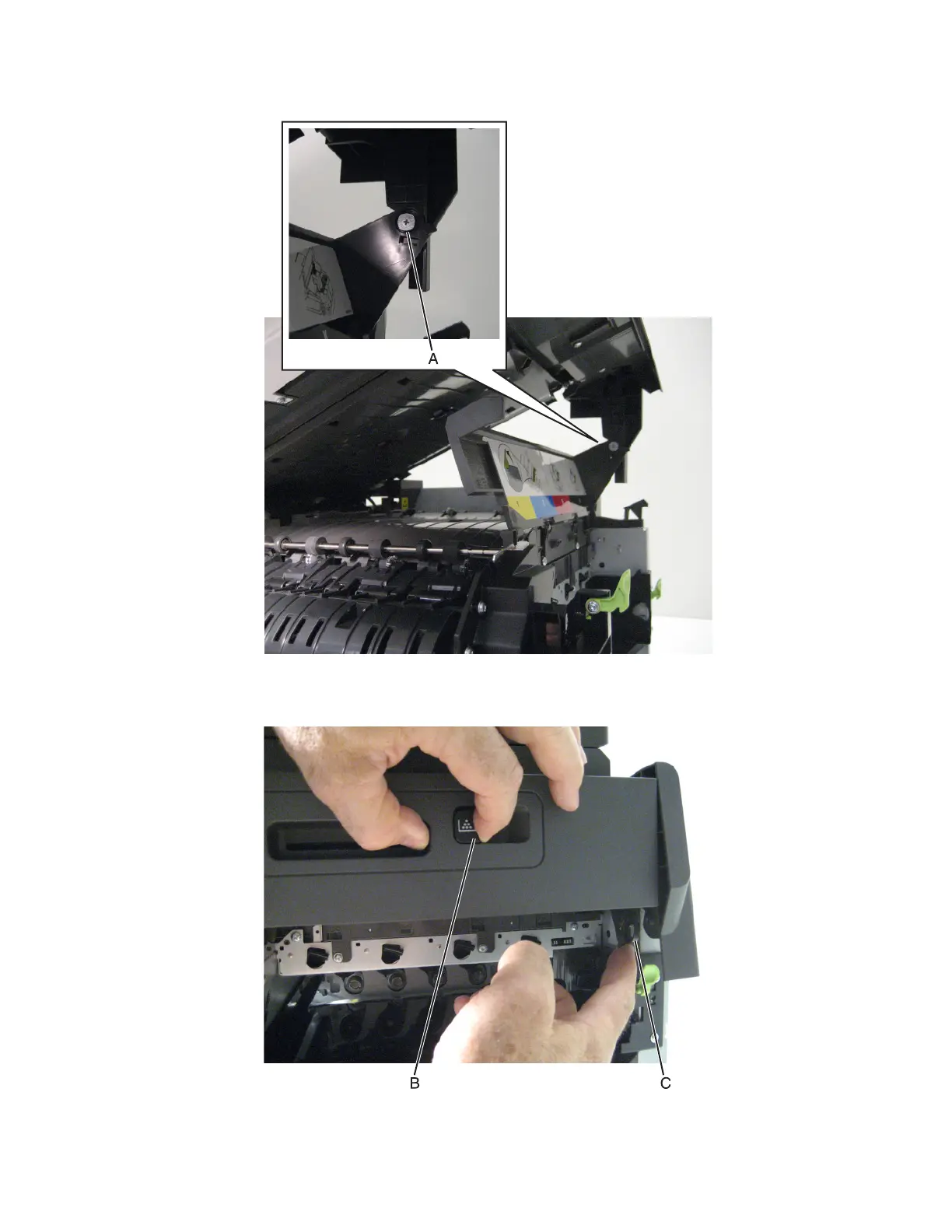

4 Remove the screw (A) from the right rear side lift lock.
5 Unlock the lift lock (B) at the top of the scanner, lower the flatbed scanner assembly until there is resistance, and
disconnect the lift lock arm from the joint (C).
7527
Repair information
334
