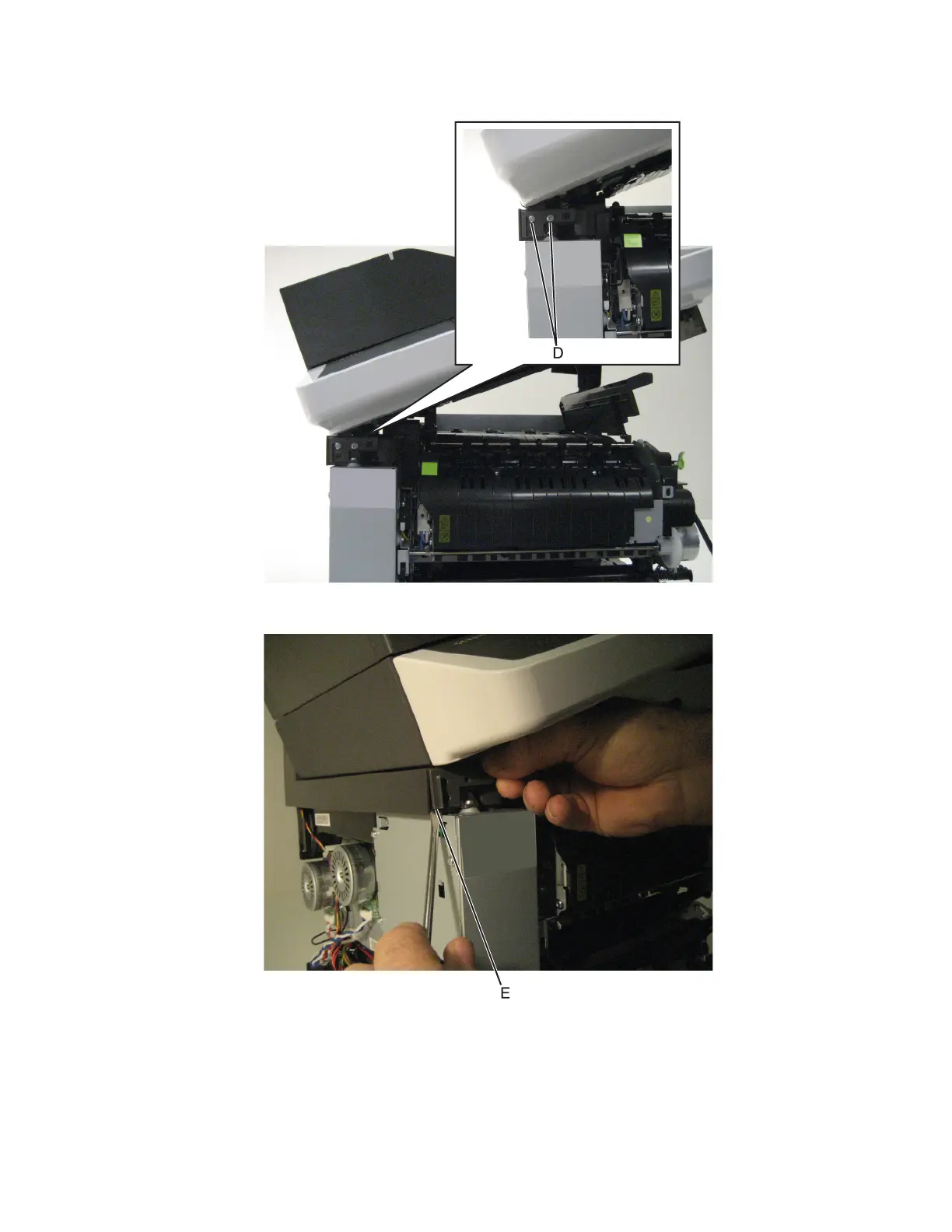

6 Remove the two screws (D) from the front left scanner hinge.

7 Use a screwdriver to disconnect the left hinge (E) from the left side of the printer.

7527

Repair information

335
