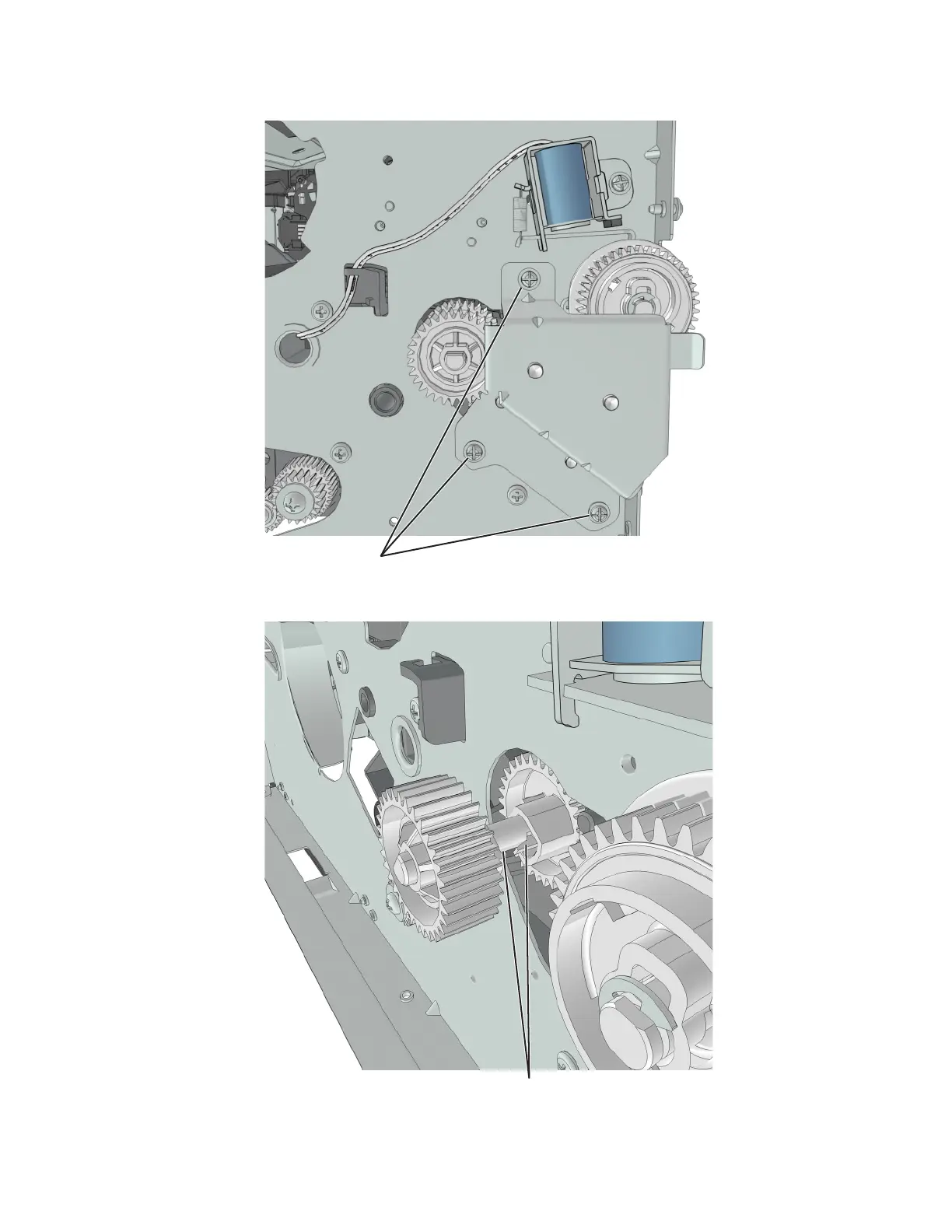

6 Remove the three screws (C), and then remove the MPF gearbox.

C

7 Release the two latches (D), and then remove the main input drive gears.

D

7015

Parts removal

287
