62sa08
Outside temperature
ENGINE
403
– LUBRICA
TION SYSTEM
Oil capacity
Drain and refill
with filter
without filter
6.8 L (7.2 qt., 6.0 lmp.qt.)
6.4 L (6.8 qt., 5.6 lmp.qt.)
Oil grade
ILSAC multigrade engine oil

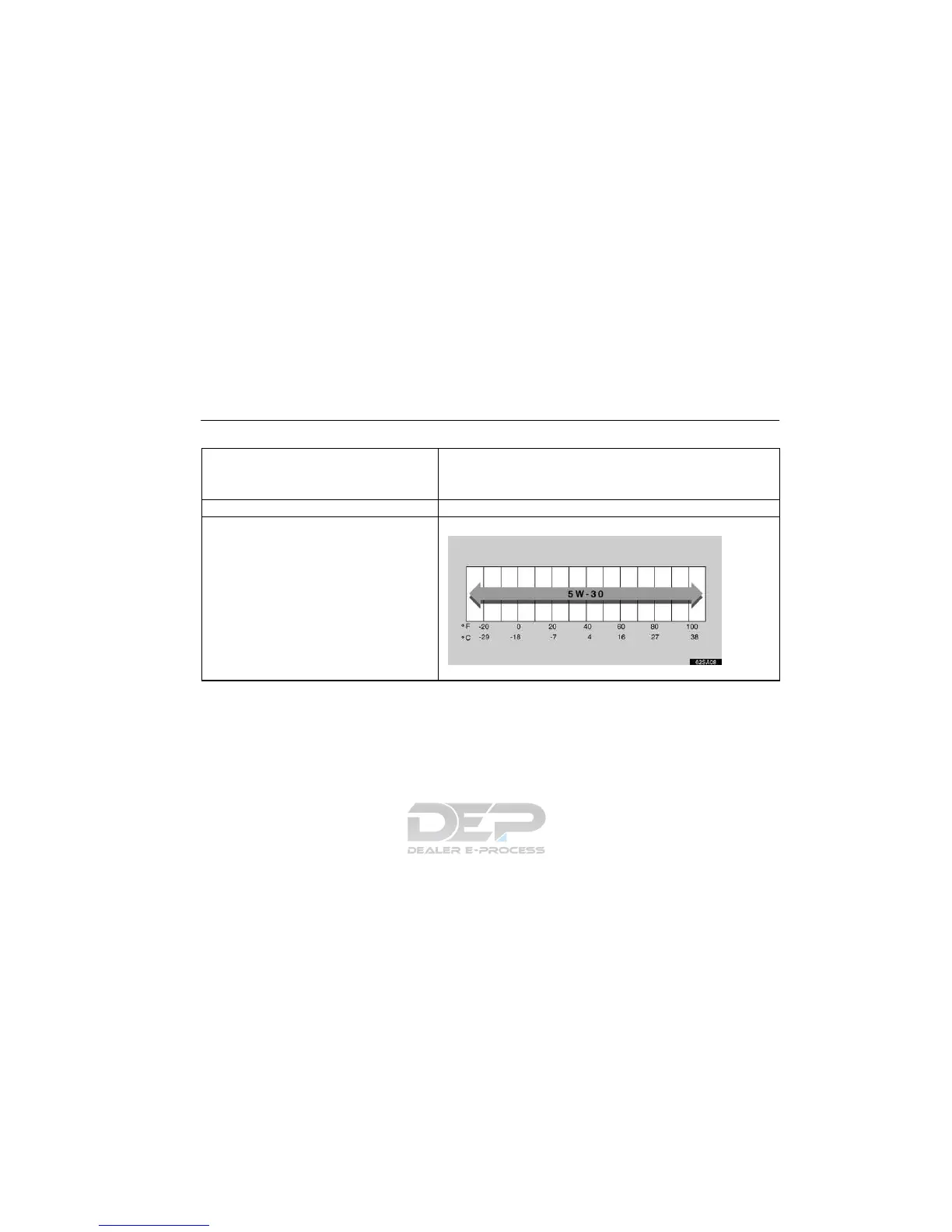

Recommended oil viscosity
SAE 5W
−
30
NOTE:
“T
oyota
Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus appro
ved “T
oyota
Genuine Motor Oil” or equivalent to satisfy
the above grade and viscosity
. Please contact your Lexus dealer for further details.
424
426
