COMFORT ADJUSTMENT
132
2001 MY RX300_U (OM48431U)

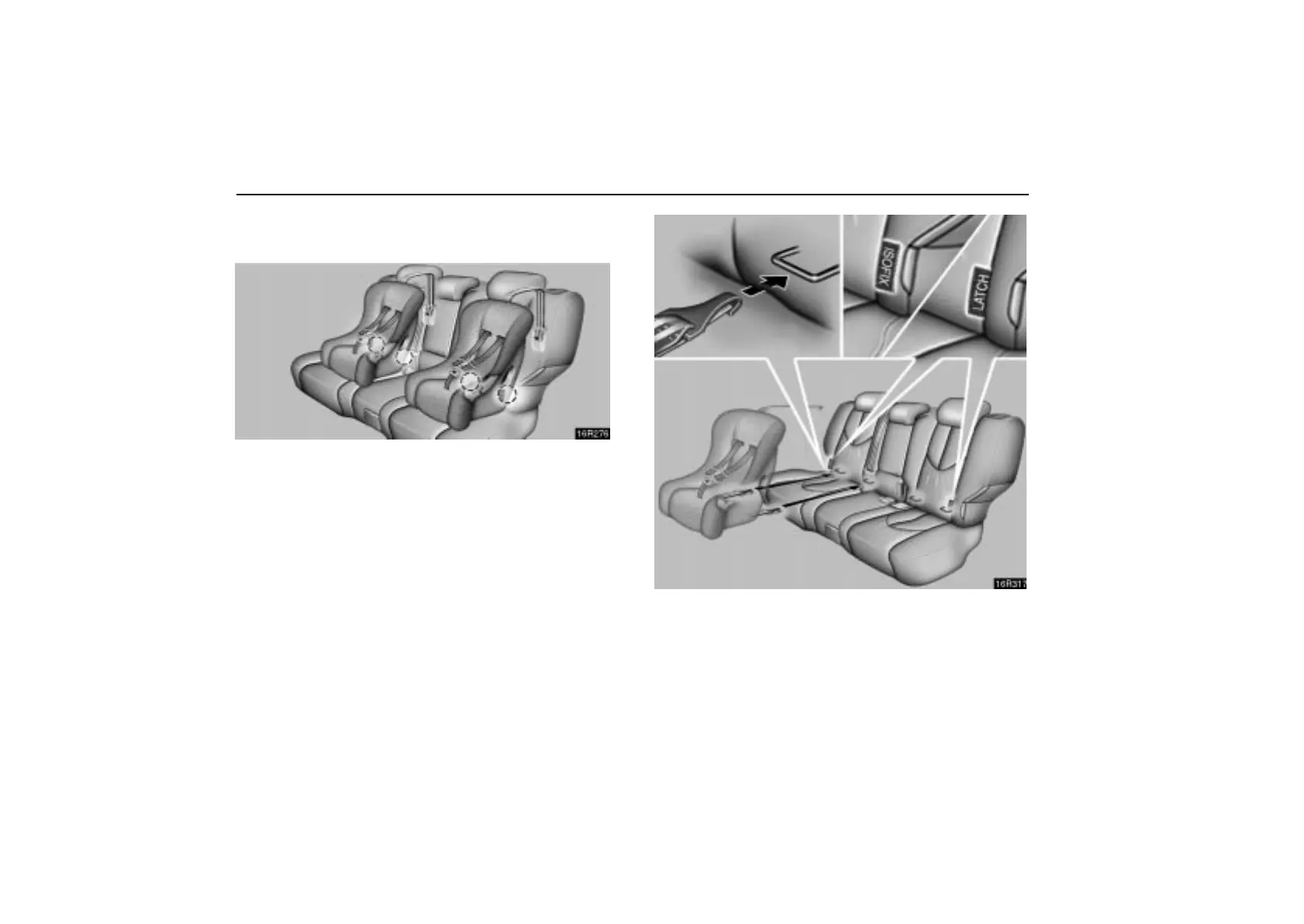

Installation with child restraint lower
anchorages
16R276
The lower anchorages for the child restraint system
interfaced with the FMVSS225 specification are installed
in the rear seat.
The anchorages are installed in the clearance between the
seat cushion and seatback of both outside rear seats.
Child restraint system interfaced with the FMVSS225
specification can be fixed with these anchorages. In this case,
it is not necessary to fix the child restraint system with a seat
belt on the vehicle.
16R317
Type A
1. Widen the clearance between the seat cushion and
seatback a little and confirm the position of the lower
anchorages below the tag in the seatback.
2. Latch the hooks of lower straps onto the anchorages
and tighten the lower straps.
To Next Page
