Installation and connection
3 Installation and connection

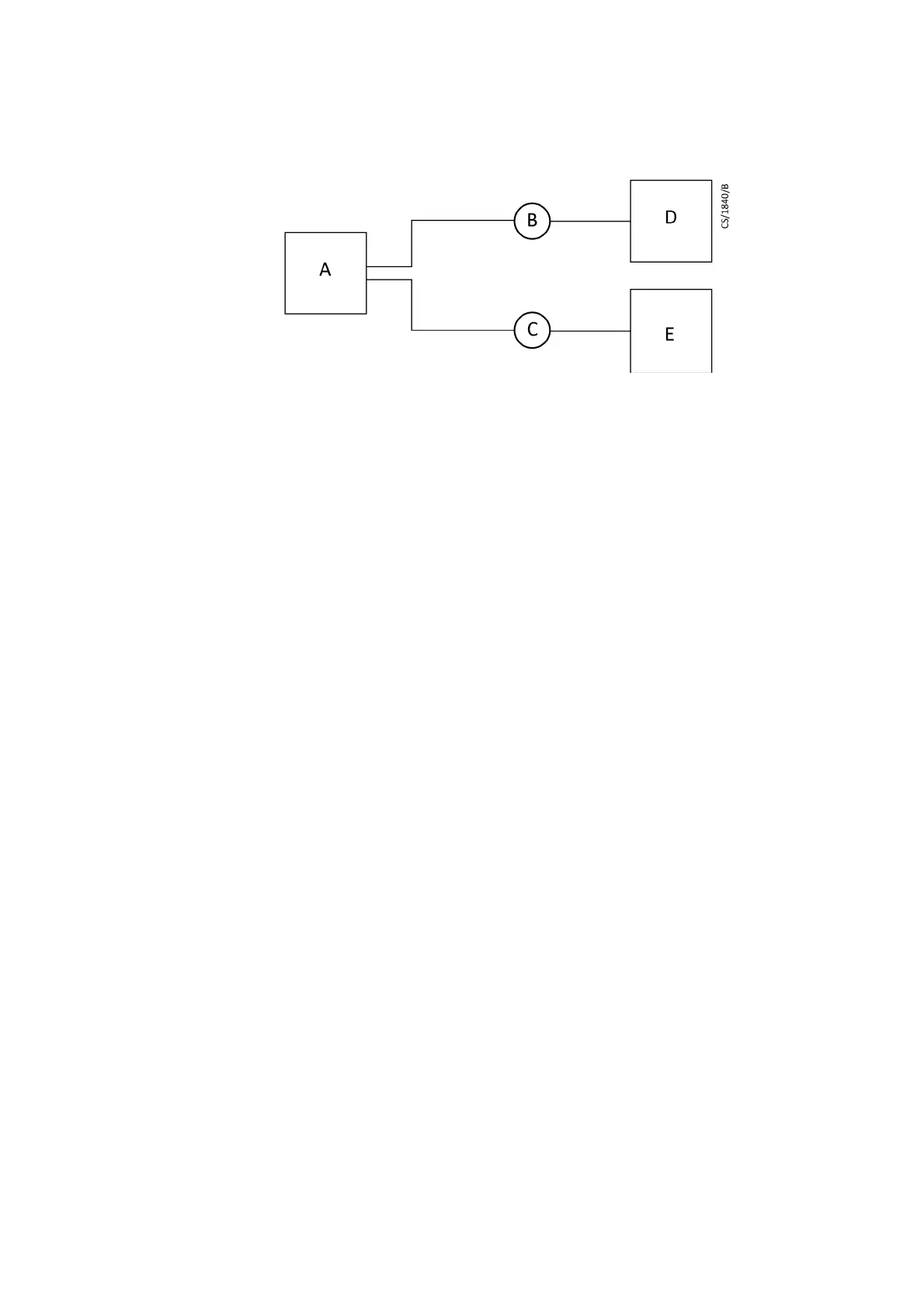

* This figure is for the single sensor type.
A. LEYSPEC Residual Gas Analysers
B. LAN cable
C. AC/DC adaptor
D. PC
E. Mains power
3.1 Preliminary operation
1. Unpack the instrument and check quantities.
2. Check if any components are damaged.
3.2 Installation
3.2.1 Install the sensor
1. Measuring position
 This product measures pressure by measuring the static pressure in the
position where the analyzer tube is connected. Take care in selecting the
measuring position because the measurement value is affected if there is a
flow in the vacuum system, source of out-gas or source of high intensity
electrons or ions.
 The correct pressure measurement cannot be made or the analyzer tube
may fail if the analyzer tube is subject to vibration, heat radiation, high
intensity electromagnetic field or high intensity radiation.
 The LEYSPEC Residual Gas Analysers must be connected to power
supplies or instruments that conform to the requirements of a grounded
protective extra-low voltage (SELV-E according to EN 61010).
 Keep enough room around the unit as to not cover panel vents and allow for
sufficient heat dissipation.
2. Installing the analyzer tube
