LEYBOLD VARODRY VD65 - Page 37

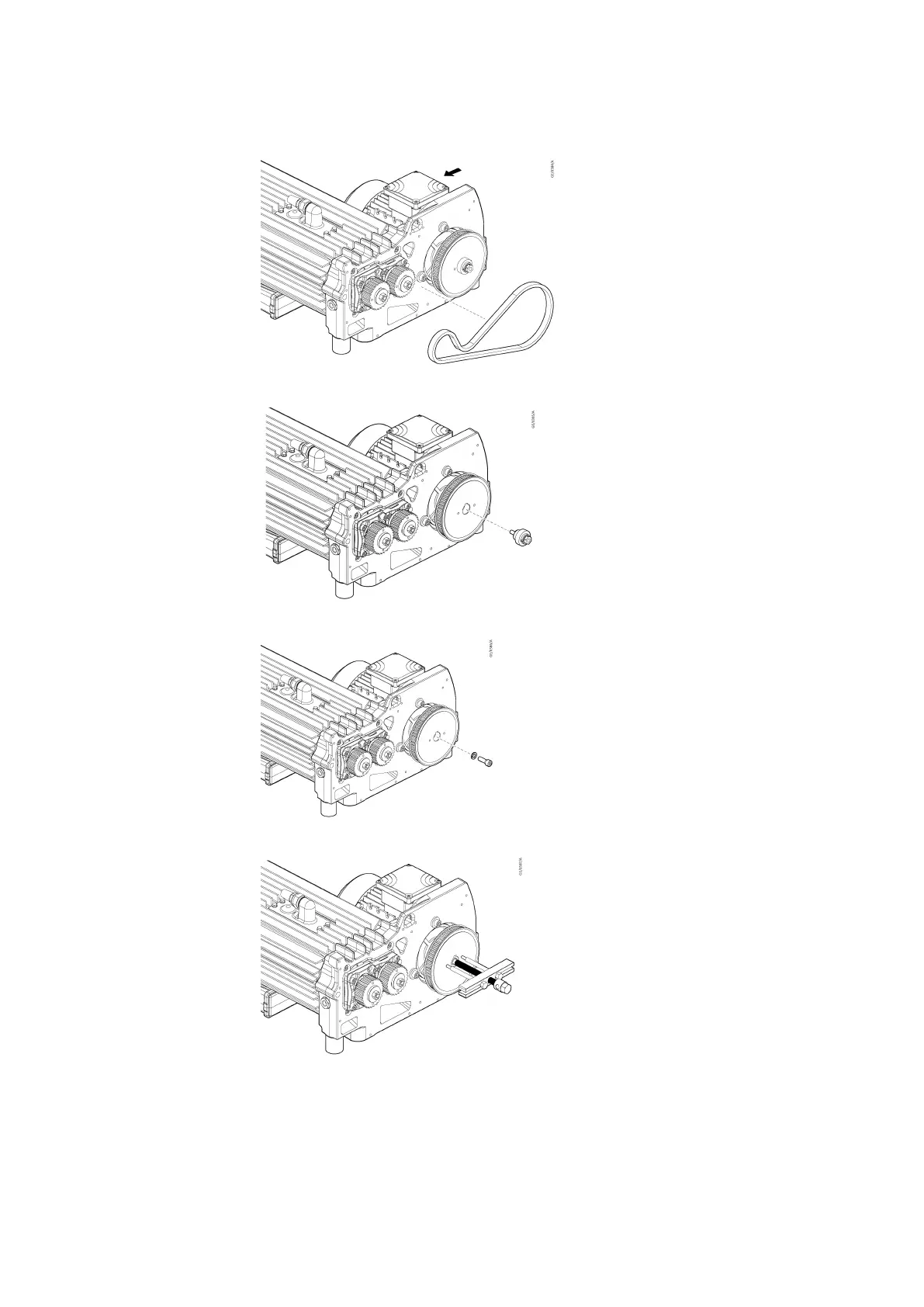

10. Push the motor gently and pull out the belt.
11. Remove the centre screw.
12. Install the M8 hexagonal bolt and washer.
13. Install the gear puller into the middle of the pulley.
37
300766038_002_C3 - 09/2021 - © Leybold
Maintenance
