OPERATING INSTRUCTIONS FOR ROUTER
INSTALLING THE ROUTER ASSEMBLY
WARNING: ALWAYS turn the motor off and unplug the router from the power source before
making any adjustments or installing accessories. Failure to turn the motor off and unplug the
router could result in accidental starting, which can cause serious personal injury.
Selecting a cutter bit (available separately)
This router comes with 1/4 in. and 1/2 in. collets that accept cutter bits with 1/4 in. and 1/2 in.
diameter shanks, respectively.
WARNING: Do not use router cutter bits that have a cutter bit diameter larger than 1-1/4 in.,
because they will not t through the sub-base opening, could cause damage to the sub-base and
the motor, and could cause serious personal injury to the operator.

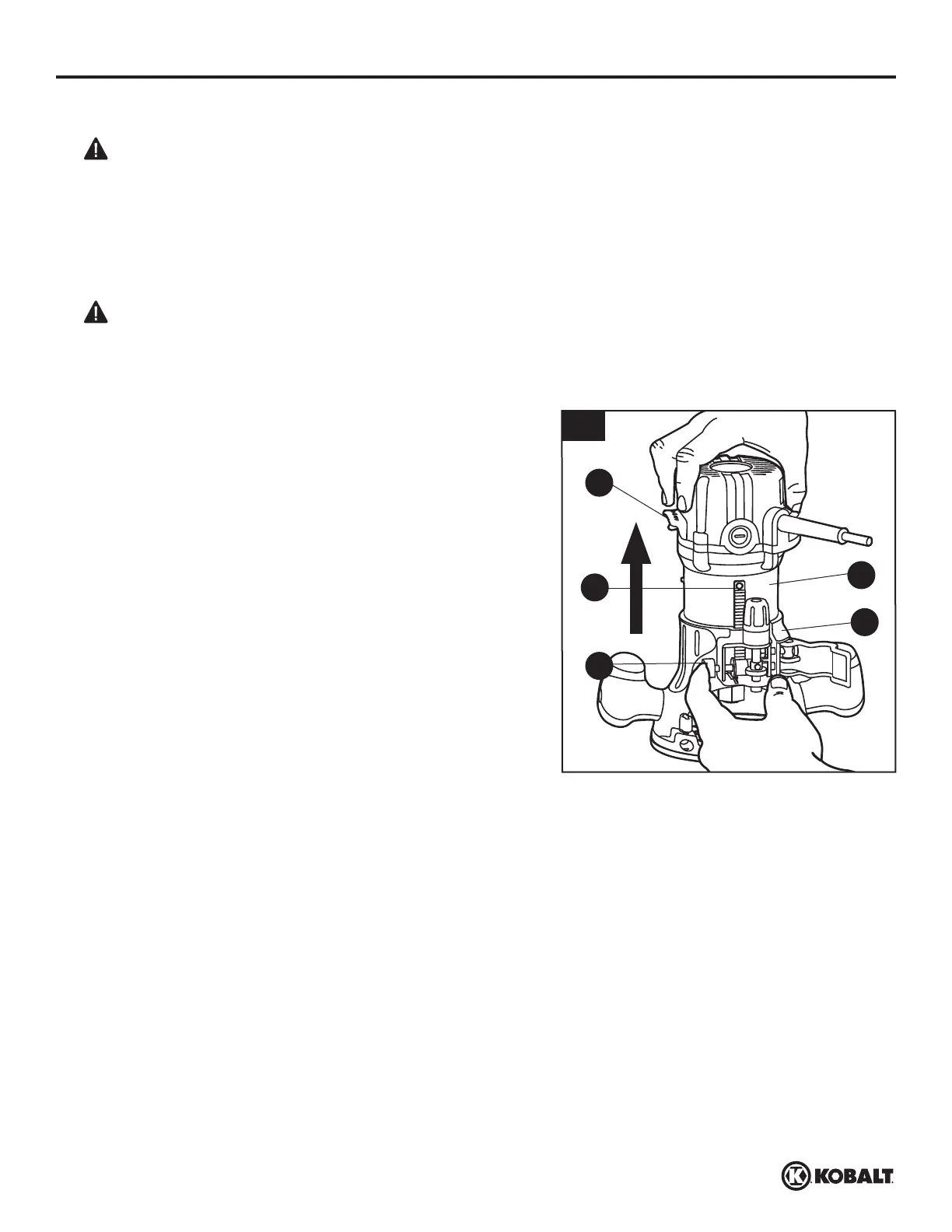

6. Removing the motor from the base
Before a router bit can be inserted, the motor and
housing must rst be removed from the xed base.
a. Use the ON/OFF toggle switch (B) to turn the motor
off. Unplug the tool from the power the source.
b. Place the router (xed base (D)) and motor housing
(E) on a at surface.
c. With the back of the router facing the operator,
loosen the motor clamp (P).
d. Press the coarse-adjustment knob (O) to release the
motor housing key strip (L) from the gear in the base,
while lifting the motor housing free of the base.
6
B
L
O
E
D
