14

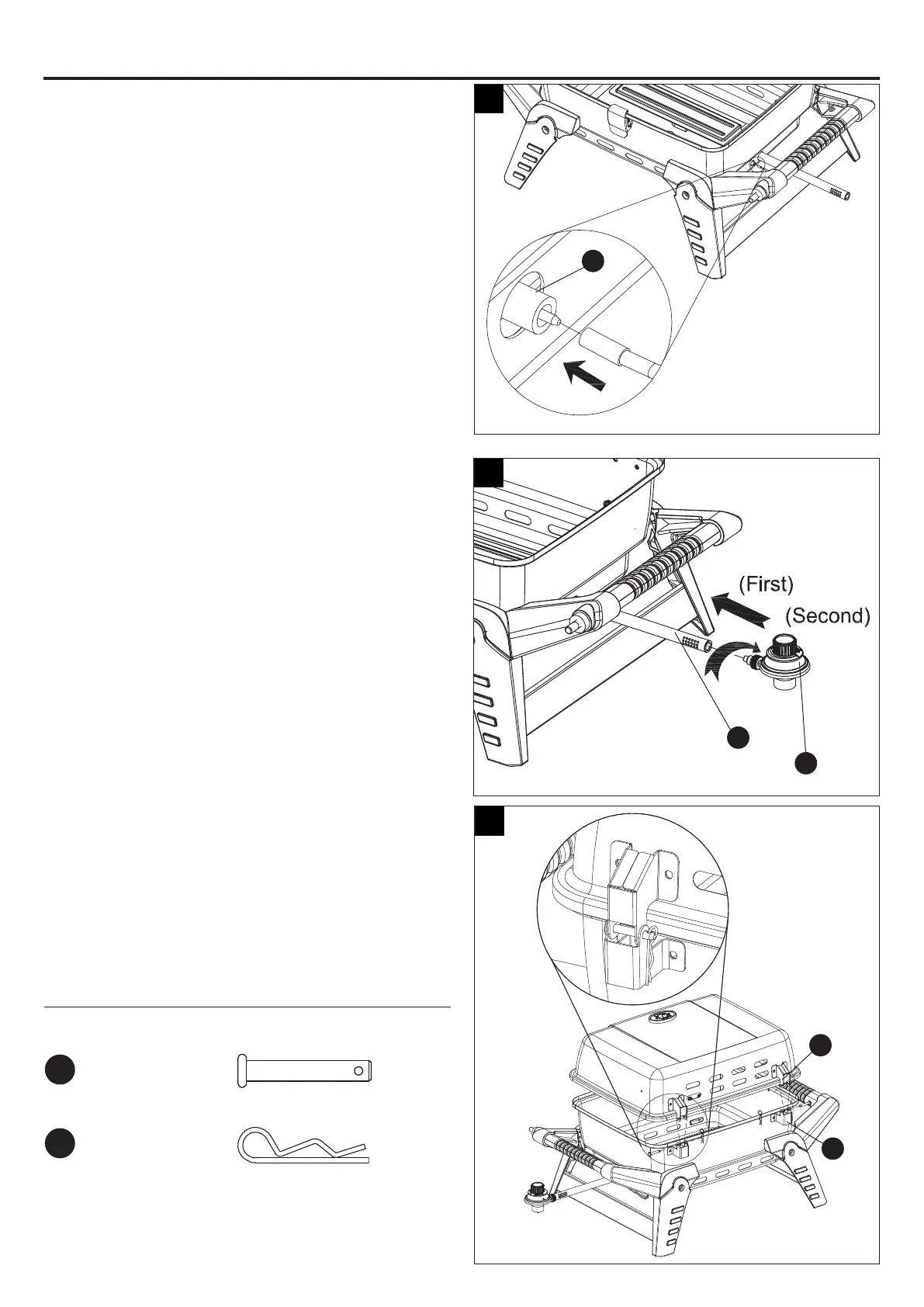

Step 10: Insert Igniter Wire
Plug the igniter wire onto the electrode (P).
NOTE:
Failure to plug the igniter wire to the
igniter electrode will result in no ignition.
Step 11: Attach Regulator/Control Knob
Attach the regulator/control knob (R) onto the
burner (O).
ASSEMBLY INSTRUCTIONS
Step 12: Place Lid onto Bottom Bowl
Align the holes in the top hinges (F) and bottom
hinges (G). Then insert two Ø5 x 30 pins (OO)
and two Ø1.4 x 30 cotter pins (PP) into the holes
shown in Fig.12.
Hardware Used
Ø5 x 30
Pin
x 2
Ø1.4 x 30
Cotter Pin
x 2
PP
OO
10
11
12
P
O
R
F
G
To Next Page
