10
EXISTING CONSTRUCTION INSTALLATION (Continued)

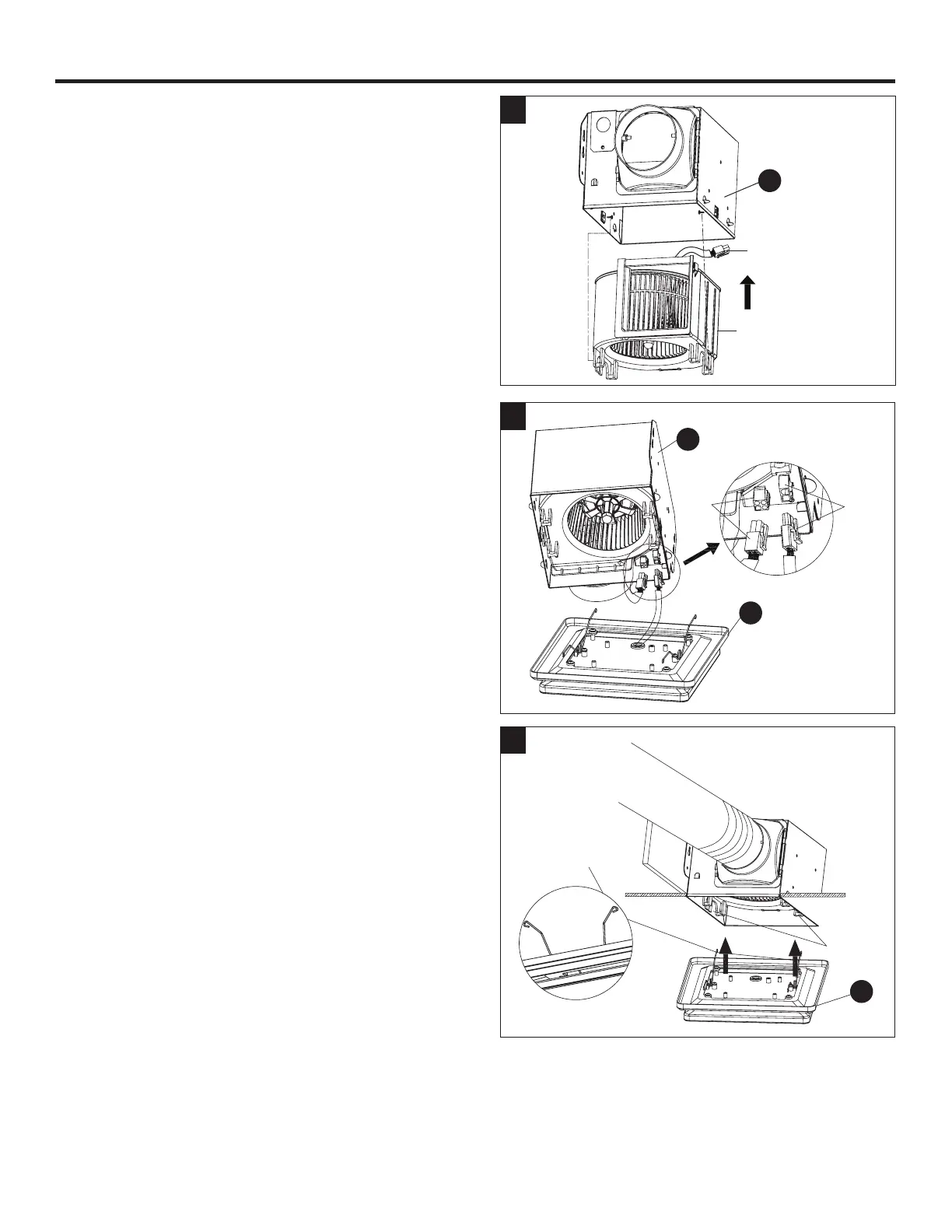

11. Plug the fan motor plug into the fan housing (A). Place the fan
motor back into the fan housing (A), aligning the duct with the
duct opening in the fan housing (A), and attach the fan motor to
the housing using the three screws removed in step 5.
11
12. Join the connectors for the LED light from the fan housing (A) to
the grille (B). The grille (B) must be connected before turning on
power to the fan.
A
B
12
13. Attach the grille (B) by pinching the mounting springs and
inserting them into the narrow rectangular slots in the
fan housing (A).
Turn on power source. Check the fan for any abnormal sounds or
vibrations.
B
13
Fan motor
plug
Fan motor
4
hole
2
hole
Mounting
springs
Housing
slots
A
A
B
B
To Next Page
