6
NEW CONSTRUCTION INSTALLATION (Continued)

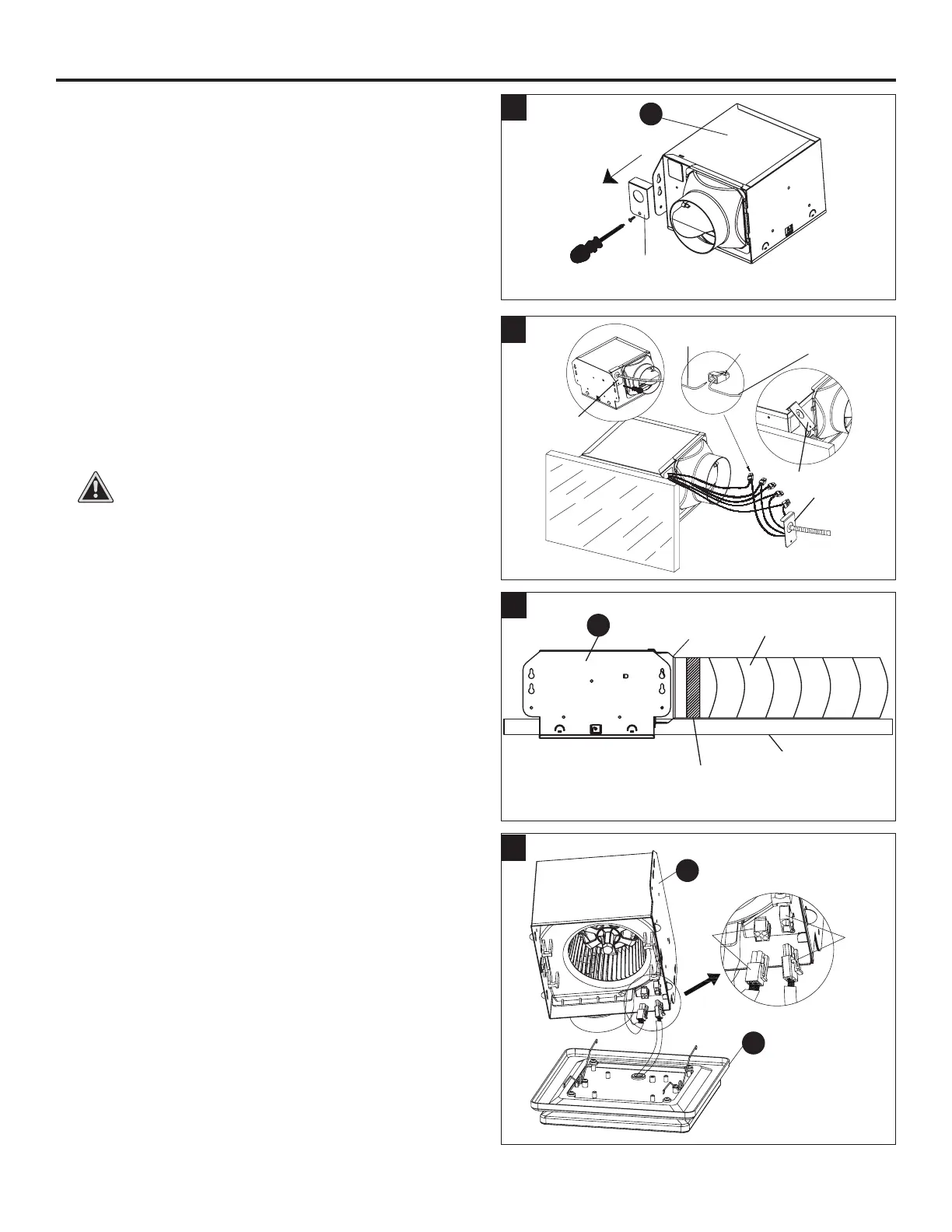

4. Remove the wiring box cover from the fan housing (A) with a
Phillips screwdriver (not included).
Remove the wiring knockout from the wiring box cover with a
athead screwdriver (not included).
Wiring box
cover
A
4
5. Pull the house wires through the hole in the wiring box cover.
Using the quick connectors, connect the house wiring from
the wall switch to the fan housing (A). 14 AWG is the smallest
conductor that should be used for branch-circuit wiring. Please
refer to the wiring diagrams on page 4 to ensure proper wire
connections are made.
Carefully push the wire connections into the wiring box housing
and reattach the wiring box cover.
CAUTION: If your electrical wires do not match the
colors listed, consult a licensed electrician to determine
what each house wire represents before connecting
the fan.
5
6. Connect a 4 in. circular duct to the duct connector on the fan
housing (A), securing it with duct tape or a clamp. Vent the
duct to the outside.
Finish ceiling work. The ceiling hole should be aligned with
the edge of the fan housing (A).
4 in.duct
A
Ceiling
Duct tape
or clamp
6
7. Join the connectors for the LED light from the fan housing (A) to
the grille (B). The grille (B) must be connected before turning
on power to the fan.
A
B
7
Wiring box cover
House wires
Quick
connector
Wiring
box cover
Wiring
box cover
Product
wires
Duct
connector
4 in. duct
Ceiling
board
Duct tape
or clamp
4
hole
2
hole
A
A
A
B
