Motor
Tools and Materials Needed
• 19 mm wrench
• Crosshead screwdriver
• Set of metric Allen keys with ball ends
• Disposable latex/rubber gloves (for food grade products and to protect hands from grease)
• Hairnet and/or beard net (food grade products only)
• Sterile shoe covers (food grade products only)
Much similar to the Pinion Gear, the rare repair needed for this part is whenever the teeth are worn
down due to a large amount of use.
Instructions
Note: Wear latex/rubber gloves (and appropriate food grade attire if applicable) during this process.
WARNING: If you do not have sufficient experience in wiring
electrical items, do NOT attempt to replace this part at the risk of
electrical shock.
Turn off and unplug the machine before replacing this part.
The TDP 5® motor is quite heavy. Be sure to have a firm hold on
this part while you are removing the connecting bolts to prevent it
from falling and possibly causing personal injury.

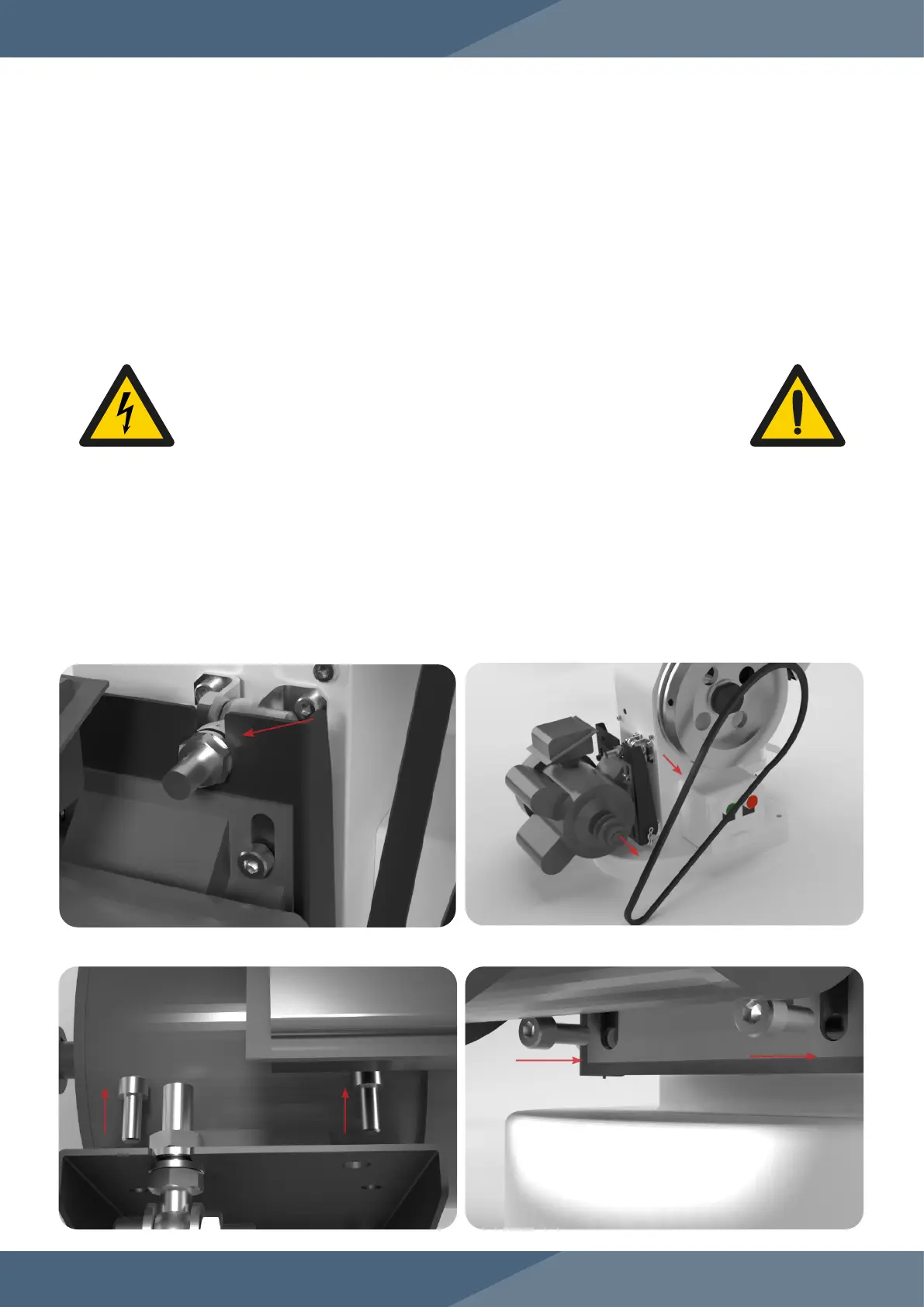

Remove the Motor
1. Remove the nut on the Motor Support Arm with a 19 mm wrench and take off the V Belt.
2. Remove the V Belt from the Drive Belt Pulley and the Electrical Drive Flywheel.
3. Remove the four connecting bolts from the Motor Mounting Plate with a wrench.
