LFA RTP 9 - Page 66

66

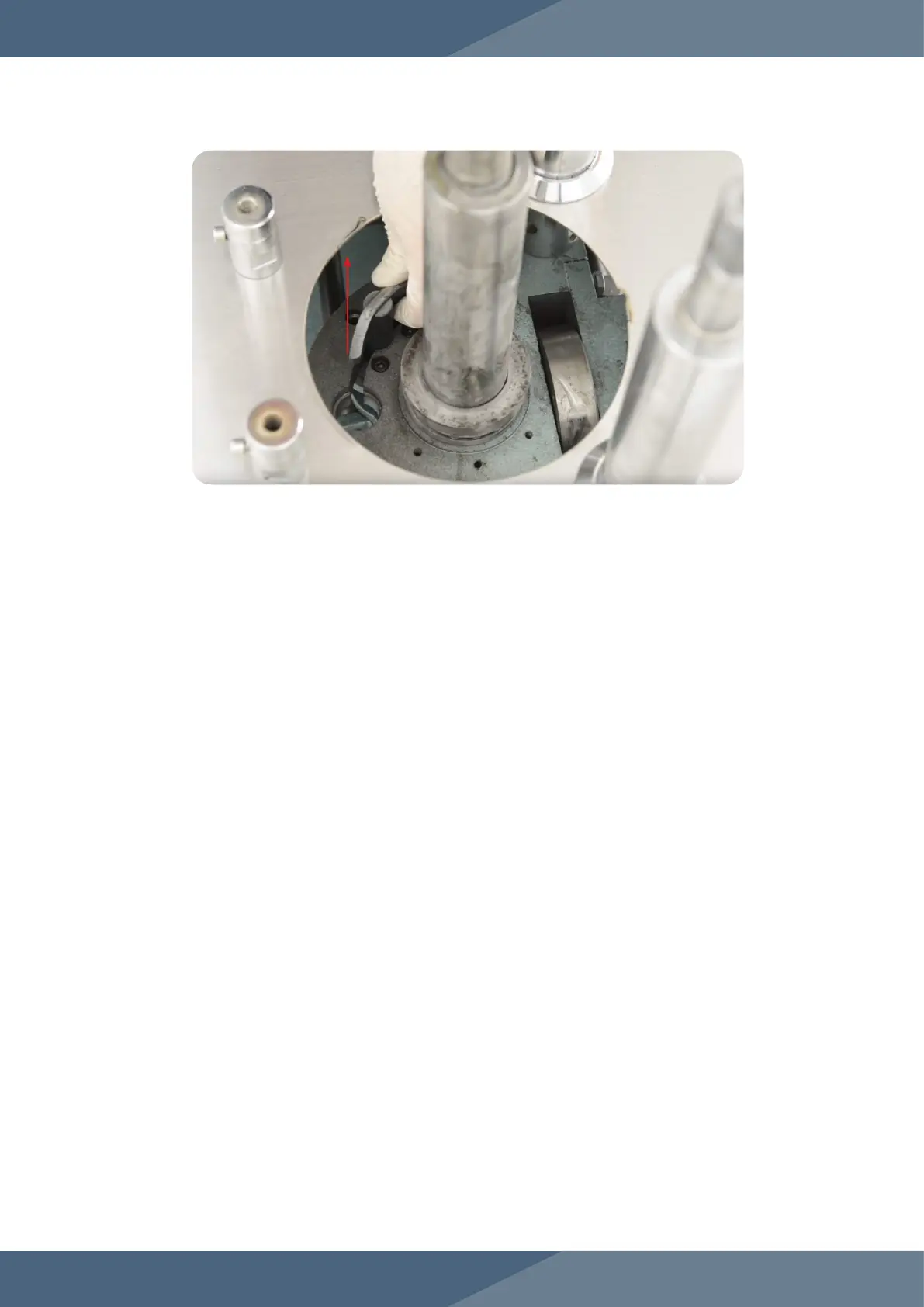

Replace the Lower Tracking
21. Secure the new Lower Tracking components with an Allen key and a crosshead
screwdriver.
22. Reinsert the Turret over the Main Drive Shaft.
23. Reinsert the Upper Cam Housing and tighten its screws with a socket wrench.
23.1 Note: The correct tension for these nuts is 70-90 Nm.
20. Pull up the Dosing Cam from the RTP 9®.
