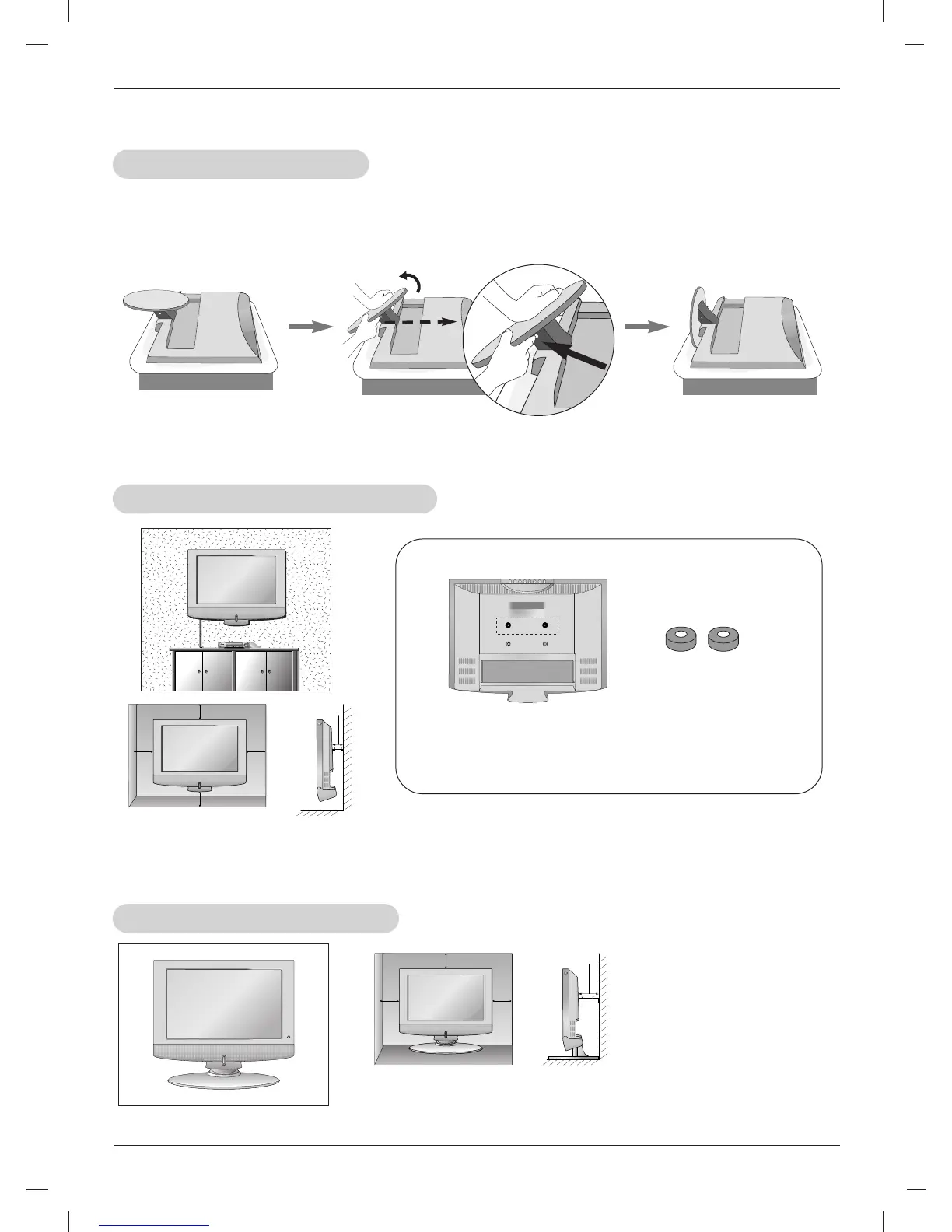

1. Place the set with its front facing downward on a cushion or soft cloth.
2. Hold down the release button inside the stand and strongly pull out the stand with your two hands.
Note: Here shown may be somewhat different from your set.
10
Installation
Installation Instruction
Installation Instruction
The stand won't move if you don't
press release button.
4 inches
4 inches
4 inches
4 inches
4 inches
For proper ventilation, allow a clearance of 4" on each side and from the wall. Detailed installation instruc-
tions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.
For proper ventilation, allow a clearance of 4" on each side and from
the wall.
4 inches
4 inches
4 inches
4 inches
Place the ring spacers on the set before installing the
wall mounting bracket so that the inclination of the
backside of the set can be adjusted perpendicularly.
2-Ring spacers
< 20LC1R
*
only >
Unfolding the stand base
Unfolding the stand base
W
W
all Mount: Horizontal installation
all Mount: Horizontal installation
Desktop Pedestal Installation
Desktop Pedestal Installation
