EXTERNALEQUIPMENT SETUP
DVD SETUP
m
x
m
z
m
XD
c
m
z
m
c
-O

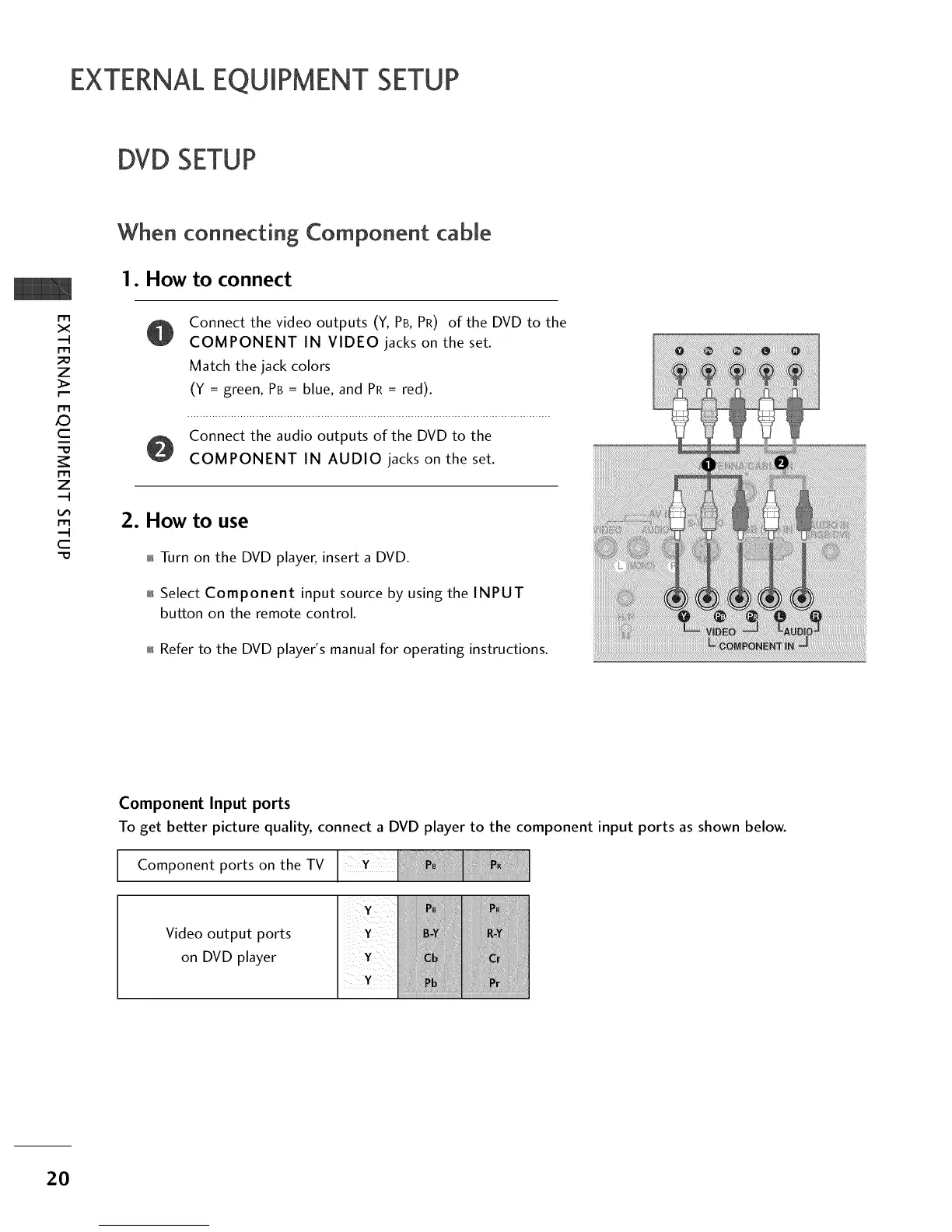

When connecting Component cable
1. How to connect
Connect the video outputs (Y, PB, PR) of the DVD to the
COMPONENT IN VIDEO jacks on the set.
Match the jack colors
(Y = green, PB = blue, and PR= red).
Connect the audio outputs of the DVD to the
COMPONENT IN AUDIO jacks on the set.
2. How to use
01_Turn on the DVD player, insert a DVD.
01_Select Component input source by using the INPUT
button on the remote control.
01_Refer to the DVD player's manual for operating instructions.
iiiiiiiiiiiiiiiii!_iiiiiiiii!i!iiiiiiiiiiiiiiiiii_i!ii_!!!i!!i!ii!!i!!i!!i!!i!!_!!i!!_!!i!!!i!ii!i!!!!!_!_i_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i!!_!_i_!_!_i_!!!!i!ii!i!iiiii!i!i_!___i!!!!!i!_!!i_!__!__!__!_!i!iiii!i!!
Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the TV
Video output ports
on DVD player
