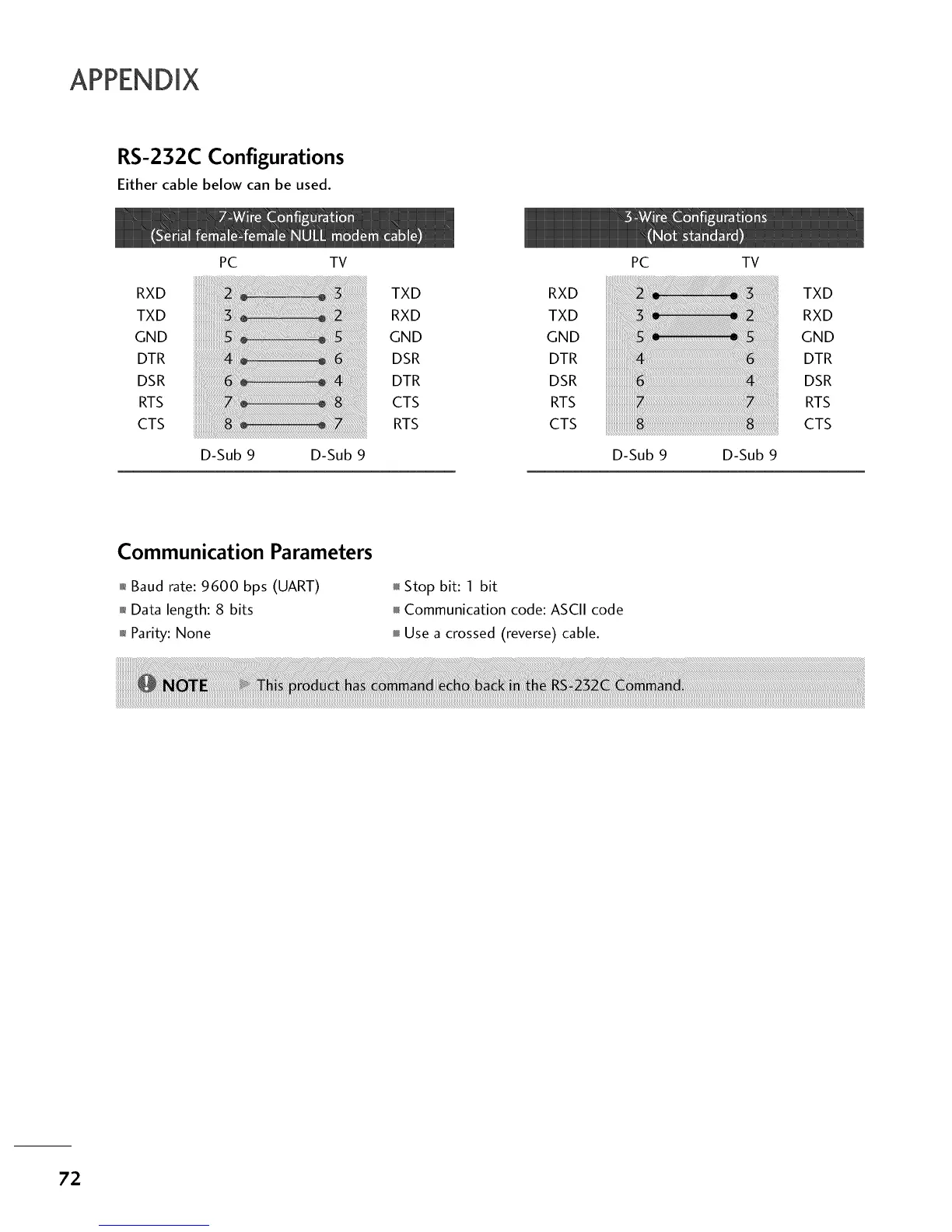

RS-232C Configurations
Either cable below can be used.
RXD
TXD
GND
DTR
DSR
RTS
CTS
PC TV
D-Sub 9 D-Sub 9
TXD
RXD
GND
DSR
DTR
CTS
RTS
RXD
TXD
GND
DTR
DSR
RTS
CTS
PC
D-Sub 9
TV
D-Sub 9
TXD
RXD
GND
DTR
DSR
RTS
CTS
Communication Parameters
01_Baud rate: 9600 bps (UART)
01_Data length: 8 bits
011_Parity: None
Stop bit: 1 bit
Communication code: ASCII code
Use a crossed (reverse) cable.
