EXTERNAL EQUIPMENT SETUP

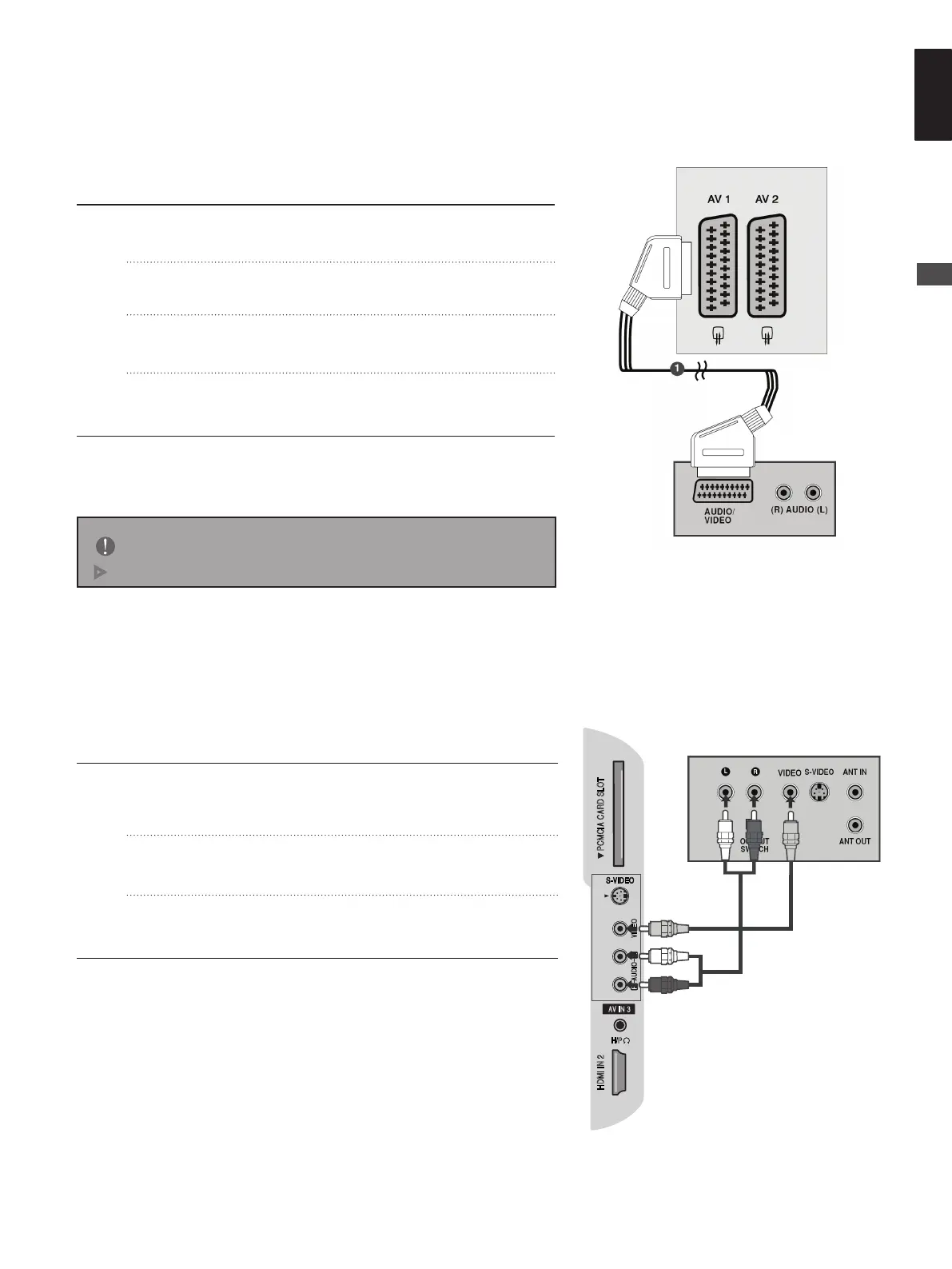

Connecting with a Euro Scart cable
Connect the Euro scart socket of the VCR to the AV1 Euro
scart socket on the TV.
Insert a video tape into the VCR and press PLAY on the
VCR. (Refer to the VCR owner’s manual.)
Select AV1 input source using the INPUT button on the
remote control.
If connected to AV2 Euro scart socket, select AV2 input
source.
NOTE
Any Euro scart cable used must be signal shielded.
Connecting with a RCA cable
Connect the AUDIO/VIDEO jacks between TV and VCR.
Match the jack colours (Video = yellow, Audio Left = white,
and Audio Right = red)
Insert a video tape into the VCR and press PLAY on the
VCR. (Refer to the VCR owner’s manual.)
Select AV3 (CVBS) input source using the INPUT button on
the remote control.
AV IN 3
H/P
S-VIDEO
HDMI IN 2 PCMCIA CARD SLOT
VIDEO
R L
AUDIO
21
ENGLISH
