EXTERNAL EQUIPMENT SETUP
20
EXTERNAL EQUIPMENT SETUP
HD RECEIVER SETUP

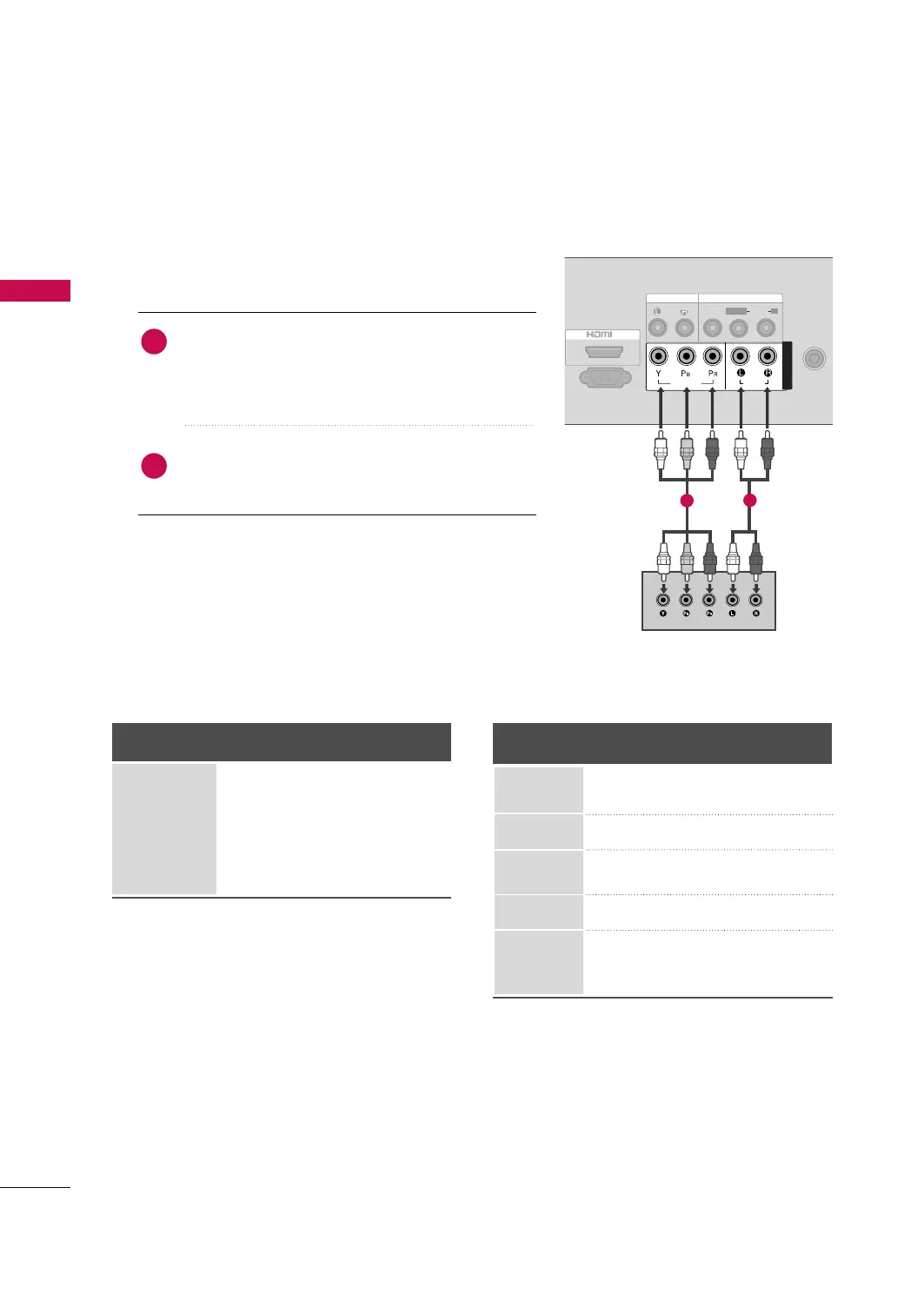

Component Connection
1. How to connect
Connect the video outputs
(
Y, PB, PR
)
of the digital set-
top box to the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO
jacks on
the TV. Match the jack colors (Y = green, P
B = blue, and
P
R = red).
Connect the audio output of the digital set-top box to
the
CCOOMMPPOONNEENNTT IINN AAUUDDIIOO
jacks on the TV.
2
1
2. How to use
■
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box operation.
)
■
Select the
CCoommppoonneenntt
input source on the TV using the
IINNPPUUTT
button on the remote control.
■
To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
Supported Resolutions
Signal
480i
480p
720p
1080 i
108 0 p
Component
Yes
Yes
Yes
No
No
HDMI
No
Yes
Yes
No
No
L/MONO
R
AUDIO
VIDEO
VARIABLE AUDIO OUT
HDMI IN HDMI DVI IN
HDMI/DVI IN
1
IN
SERVICE ONLY
ANTENNA
IN
AUDIO OUT
VIDEO
AUDIO
L( MONO)
R
AV IN
AUDIO
VIDEO
COMPONENT IN
1
2
Y, C
B/PB
, CR/P
R
Horizontal Vertical
Frequency
(
KHz
)
Frequency
(
Hz
)
15 . 73 59 . 9 4
15.75 60.00
15.625 50.00
31. 47 59. 9 4
31.50 60.00
31.25 50.00
44.96 59.94
45.00 60.00
37.50 50.00
Resolution
720x480i
720x480p
1280x720p
720x576p
720x576i
